Features & Benefits
- Thermostatically controlled
- Bottom outlet
- Thermostatic control to +/- 2 degrees even if the water pressure fluctuates
- Full thermal protection to prevent scalding in the event of hot or cold water shut off
- In the event of hot or cold water failure the valve will shut down as per the relevant standard
- Manufactured from high quality brass & ABS
Details
General
Brand
Nuie Choice
Style
Contemporary

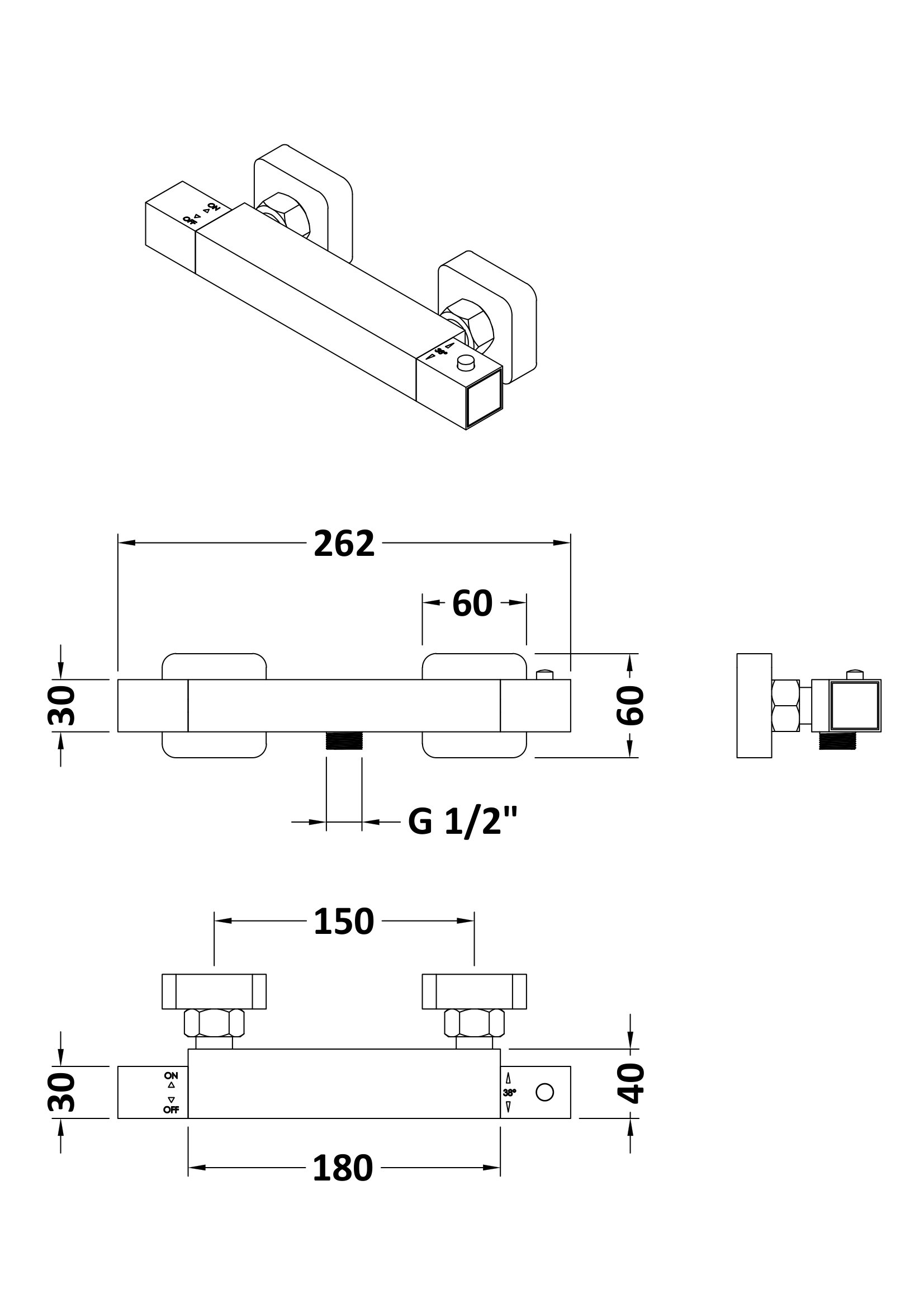

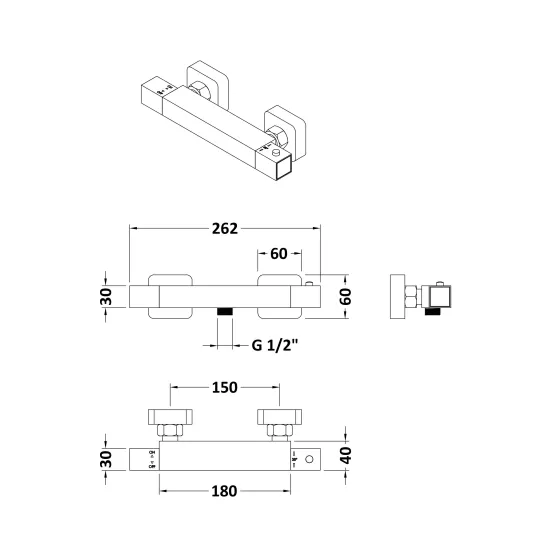

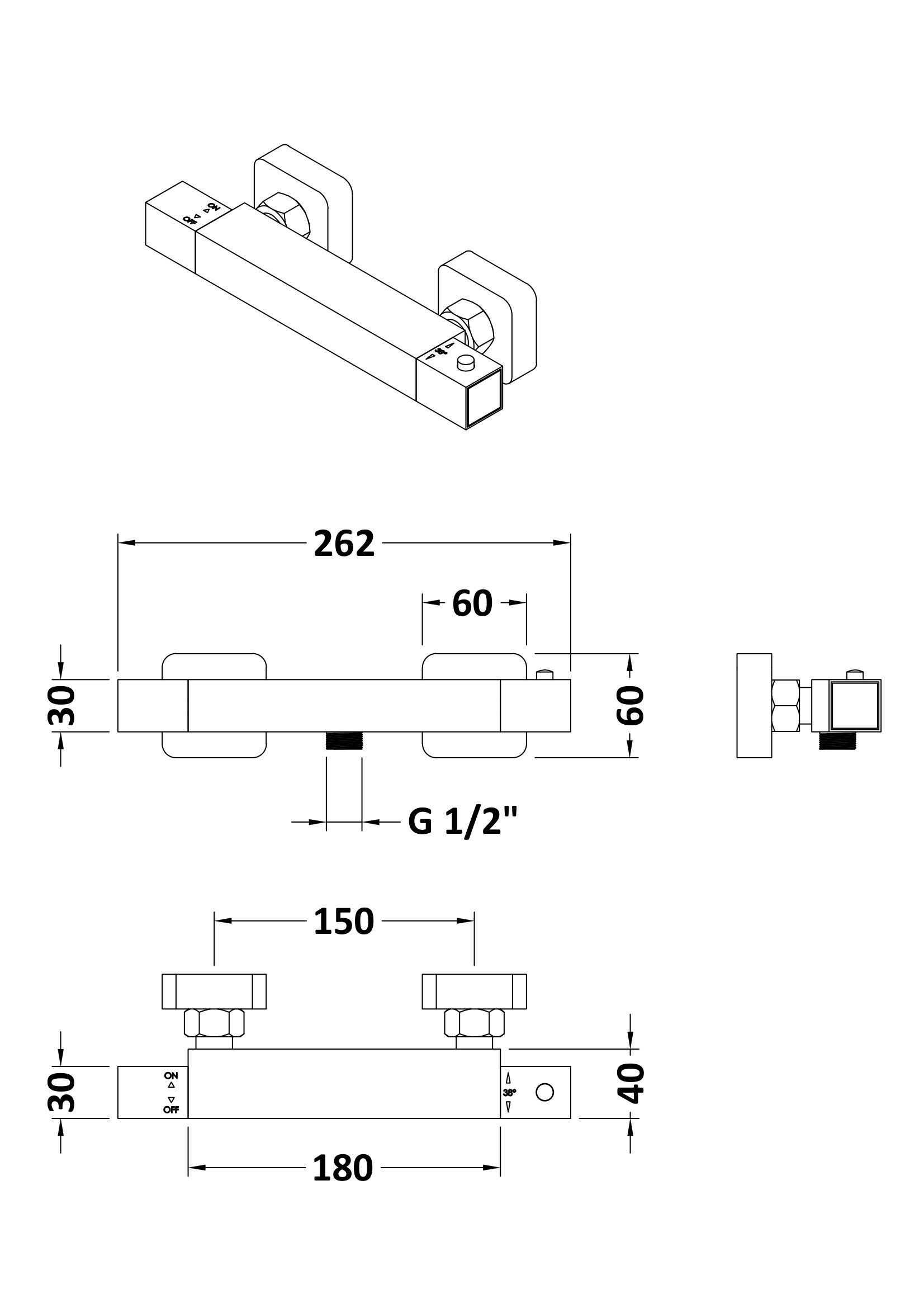

Dimensions & Capacity
Enclosure Adjust
-
Pipe Centres
150
Product Depth
40 mm
Product Height
32 mm
Product Length
32 mm
Product Width
257 mm
Design & Materials
Colour
Chrome
Product Material
Brass Abs
Shower Valve Style Shape
Bar Valve
Valve Handle Type/Shape
Bar Valve
Features & Benefits
Stain Rust Resistant
Yes
Installation & Compatibility
Assembly Required
No
What's Included
Includes Waste
Cartridge Included
Yes
Handset Included
No
Head Included
No
Outlet Elbow Included
No
Valve Included
Yes
Technical Specifications
Control Type
Manual
Flow Rate 0.1Bar l/m
4.0000
Flow Rate 0.5Bar l/m
9.0000
Flow Rate 1Bar l/m
14.0000
Flow Rate 2Bar l/m
21.0000
Flow Rate 3Bar l/m
26.0000
Handle Type
Square
Mount Type
Surface/Wall
Operating Pressure
0.5 Bar
Valve/Cartridge Type
1/4 Turn
Compliance & Warranty
Guarantee no. of years
5 Years
TMV2 Approved
No
TMV3 Approved
No
WRAS Approved
NO
