Features & Benefits
- Thermostatically controlled.
- Bottom outlet.
- Thermostatic control to +/- 2 degrees even if the water pressure fluctuates.
- Full thermal protection to prevent scalding in the event of hot or cold water shut off.
- In the event of hot or cold water failure the valve will shut down as per the relevant standard.
- Suitable for unvented mains pressure systems.
- Suitable for shower pumps.
- Manufactured from high quality brass & ABS.
Details
General
Brand
Nuie
Range
Arvan
Style
Contemporary

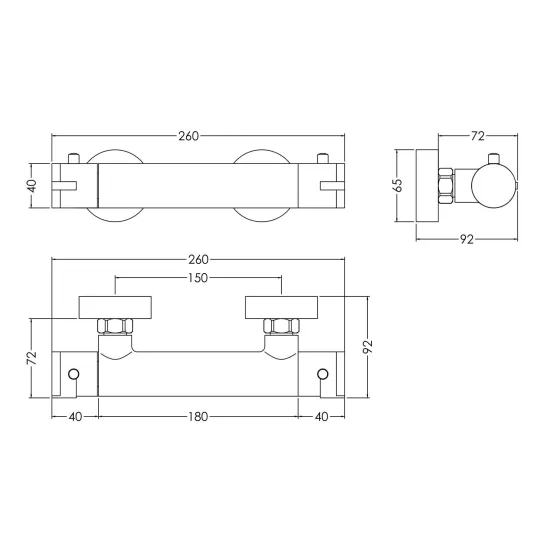

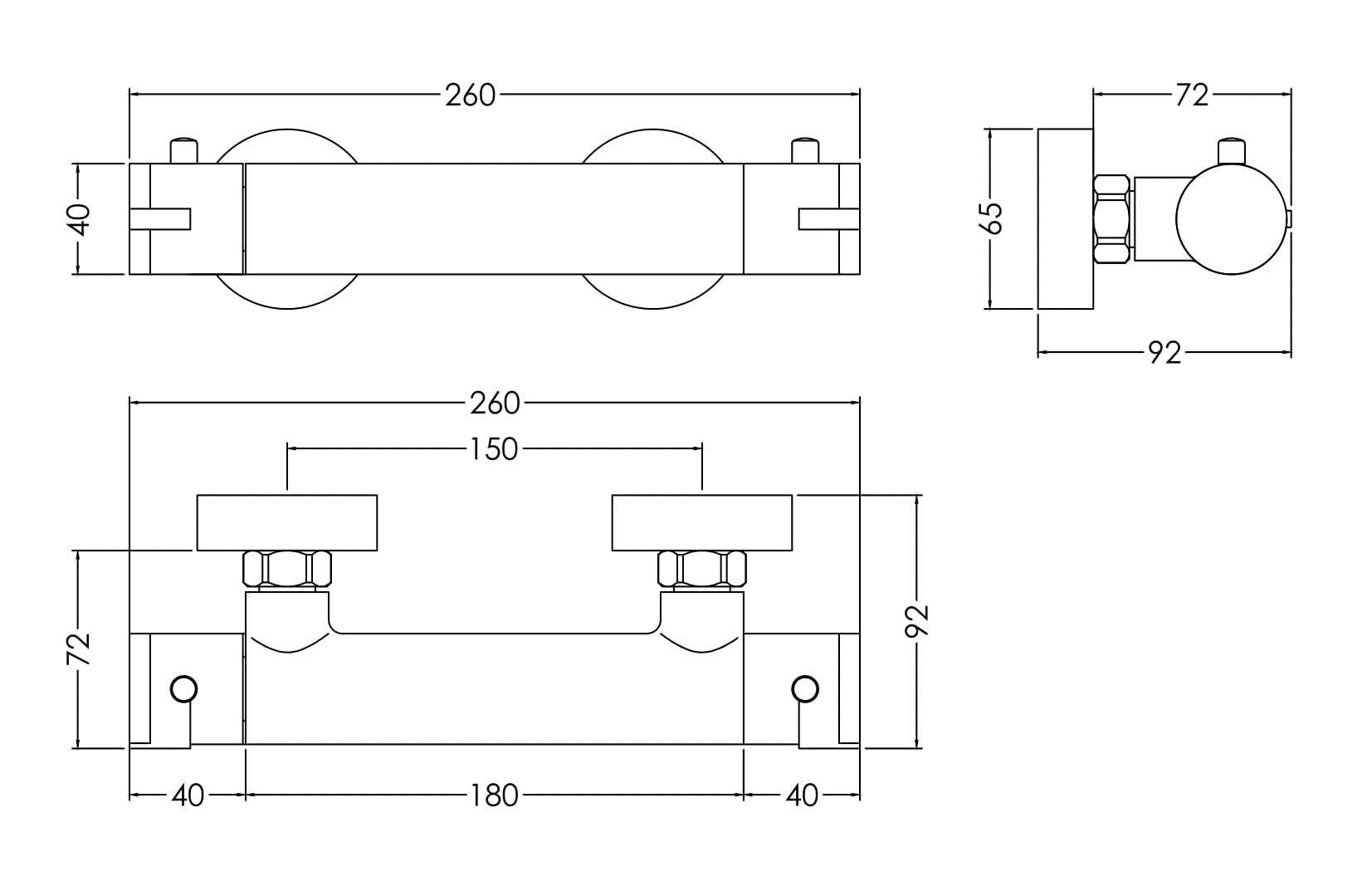

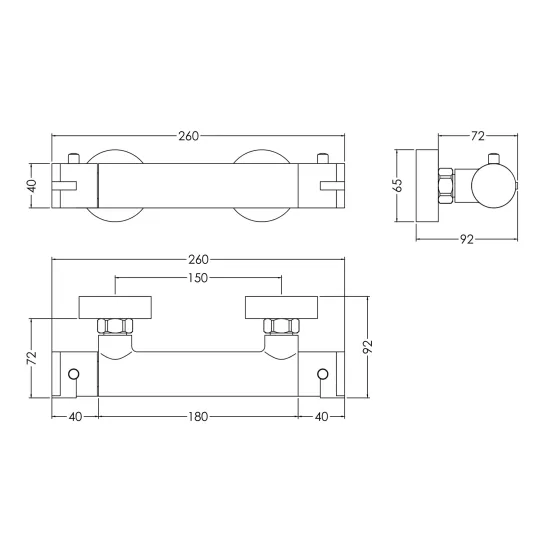

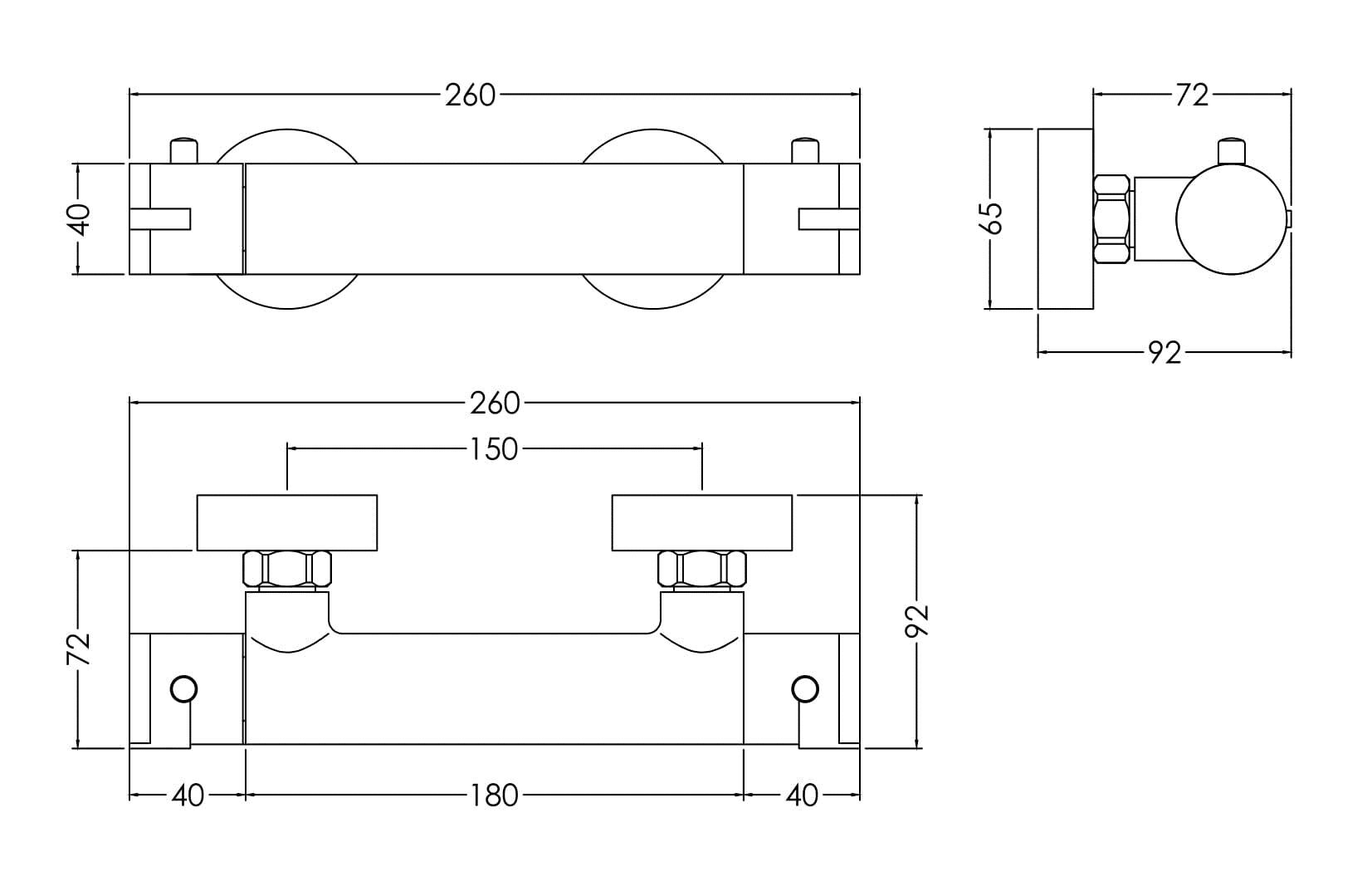

Dimensions & Capacity
Pipe Centres
150
Product Depth
72 mm
Product Height
55 mm
Product Width
275 mm
Design & Materials
Colour
Chrome
Number of Handles
2
Product Material
Brass Abs
Shower Valve Style Shape
Round
Valve Handle Type/Shape
Round
Features & Benefits
Stain Rust Resistant
Yes
Installation & Compatibility
Assembly Required
No
What's Included
Cartridge Included
Yes
Handset Included
No
Valve Included
Yes
Technical Specifications
Control Type
Manual
Flow Rate 0.1Bar l/m
3.5000
Flow Rate 0.2Bar 1/m
5.0000
Flow Rate 0.5Bar l/m
8.3000
Flow Rate 1Bar l/m
11.9000
Flow Rate 2Bar l/m
16.9000
Flow Rate 3Bar l/m
20.8000
Handle Type
Lever/Round
Mount Type
Wall Hung
Operating Pressure
0.2 Bar
Valve Mount Type
Exposed Shower
Valve/Cartridge Type
1/4 Turn
Compliance & Warranty
Guarantee no. of years
5 Years
TMV2 Approved
No
TMV3 Approved
No
WRAS Approved
NO
