White Topaz Triple Concealed Shower Valve with Diverter

TSVT005
£719.00
2 In Stock
Please sign in to buy

This product cannot be added to the
cart because you are not logged in.

Add to wish list Add to comparison list

Vendor

Roxor

Description

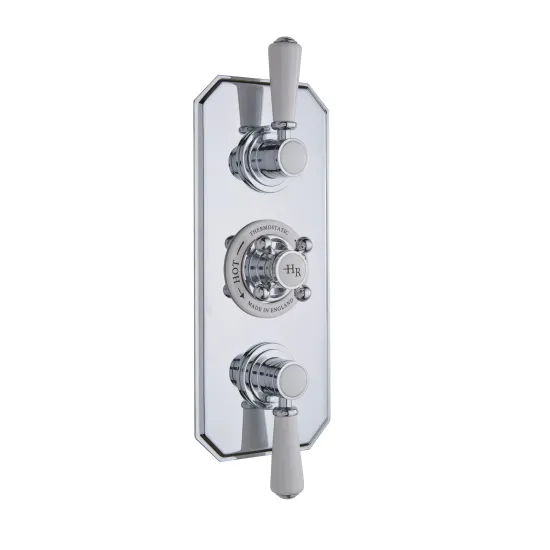

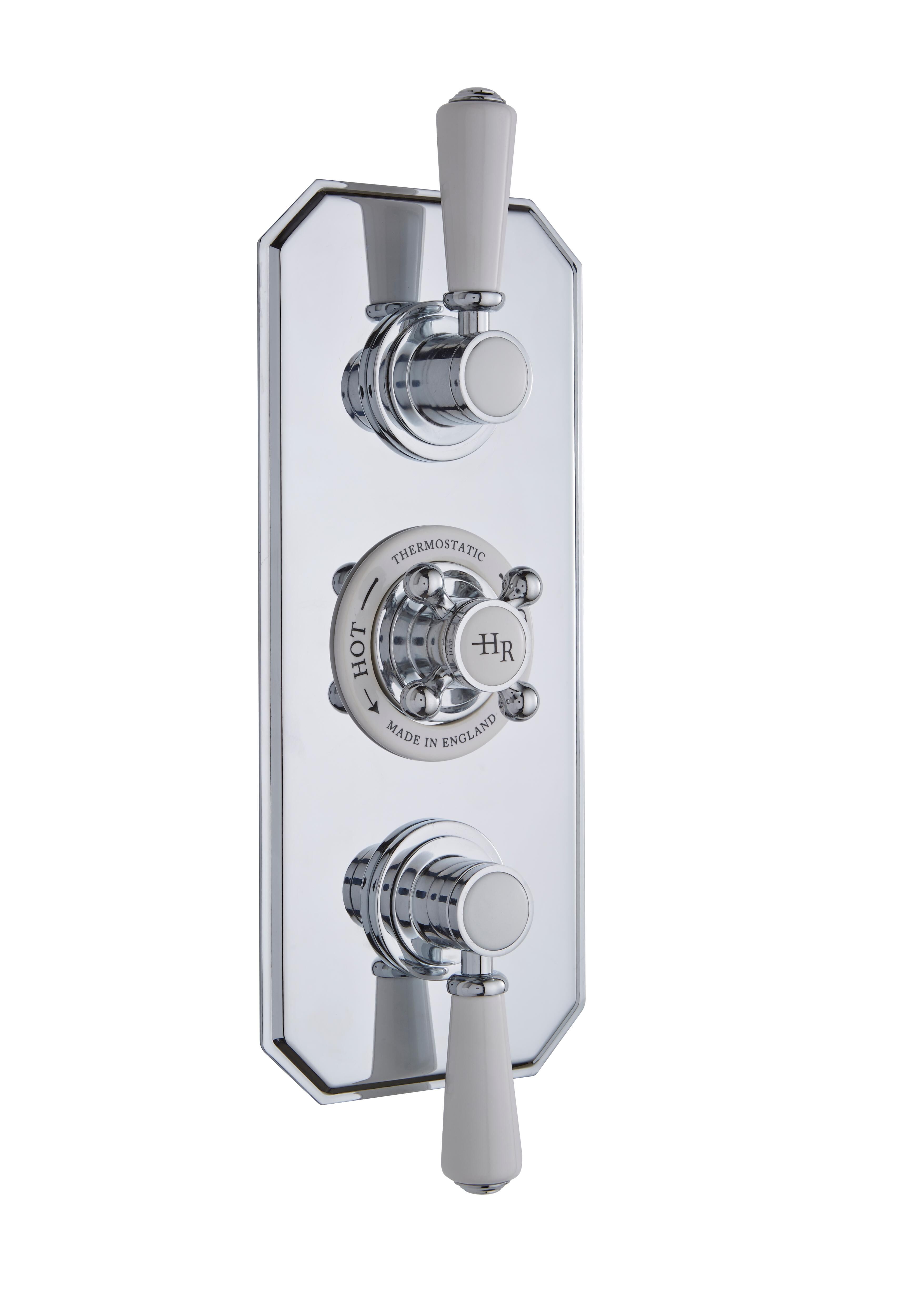

Old London White Topaz Triple Concealed Shower Valve with Diverter - Chrome / White
White Topaz Triple Concealed Shower Valve with Diverter
£719.00
Please sign in to buy

This product cannot be added to the
cart because you are not logged in.

Add to comparison list

Features & Benefits

  • Combining the elegance of traditional styling with the precision and technology of modern day design
  • Accurate flow control
  • Thermostatic control to +/- 2 degrees - even if the water pressure fluctuates
  • Full thermal protection to prevent scalding in the event of hot or cold water shut off
  • In the event of hot or cold water failure the valve will shut down as per the relevant standard
  • The unique cartridge is highly resistant to calcium build up - even in hard water areas
  • Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
  • Excellent flow rates - even at low pressure
  • Our valves can deliver 5.5 litres per minute at 0.1 bar pressure
  • The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
  • Simply remove the cartridge turn 180° and replace
  • Manufactured from high quality brass & ABS

Details

General

Brand
Hudson Reed
Range
Topaz
Style
Traditional

Dimensions & Capacity

Product Depth
135 mm
Product Height
320 mm
Product Width
120 mm

Design & Materials

Colour
Chrome
Number of Handles
3
Product Material
Brass Abs
Shower Valve Style Shape
Bevelled
Valve Handle Type/Shape
Bevelled

Features & Benefits

Stain Rust Resistant
Yes

Installation & Compatibility

Assembly Required
No

What's Included

Includes Waste
Cartridge Included
Yes
Handset Included
No
Head Included
No
Valve Included
Yes

Technical Specifications

Control Type
Manual
Flow Rate 0.1Bar l/m
5.5000
Flow Rate 0.2Bar 1/m
7.0000
Flow Rate 0.5Bar l/m
14.0000
Flow Rate 1Bar l/m
20.0000
Flow Rate 2Bar l/m
29.0000
Flow Rate 3Bar l/m
44.0000
Handle Type
Crosshead/Lever
Mount Type
Wall Hung
Operating Pressure
0.1 Bar
Valve Mount Type
Concealed Shower
Valve/Cartridge Type
1/4 Turn

Compliance & Warranty

Guarantee no. of years
20 Years
TMV2 Approved
No
TMV3 Approved
No
WRAS Approval Number
250602040
WRAS Approved
Yes
