Features & Benefits
- Minimalist sleek design
- Can be fitted vertically or horizontally
- Accurate flow control
- Thermostatic control to +/- 2 to 3 °C even if the water pressure fluctuates
- Full thermal protection to prevent scalding in the event of hot or cold water shut off
- In the event of hot or cold water failure the valve will shut down as per the relevant standard
- The unique cartridge is highly resistant to calcium build up - even in hard water areas
- Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
- Excellent flow rates - even at low pressure
- The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
- Simply remove the cartridge turn 180° and replace
- Manufactured from high quality brass & ABS
Details
General
Brand
Synergy
Range
Traba
Style
Contemporary

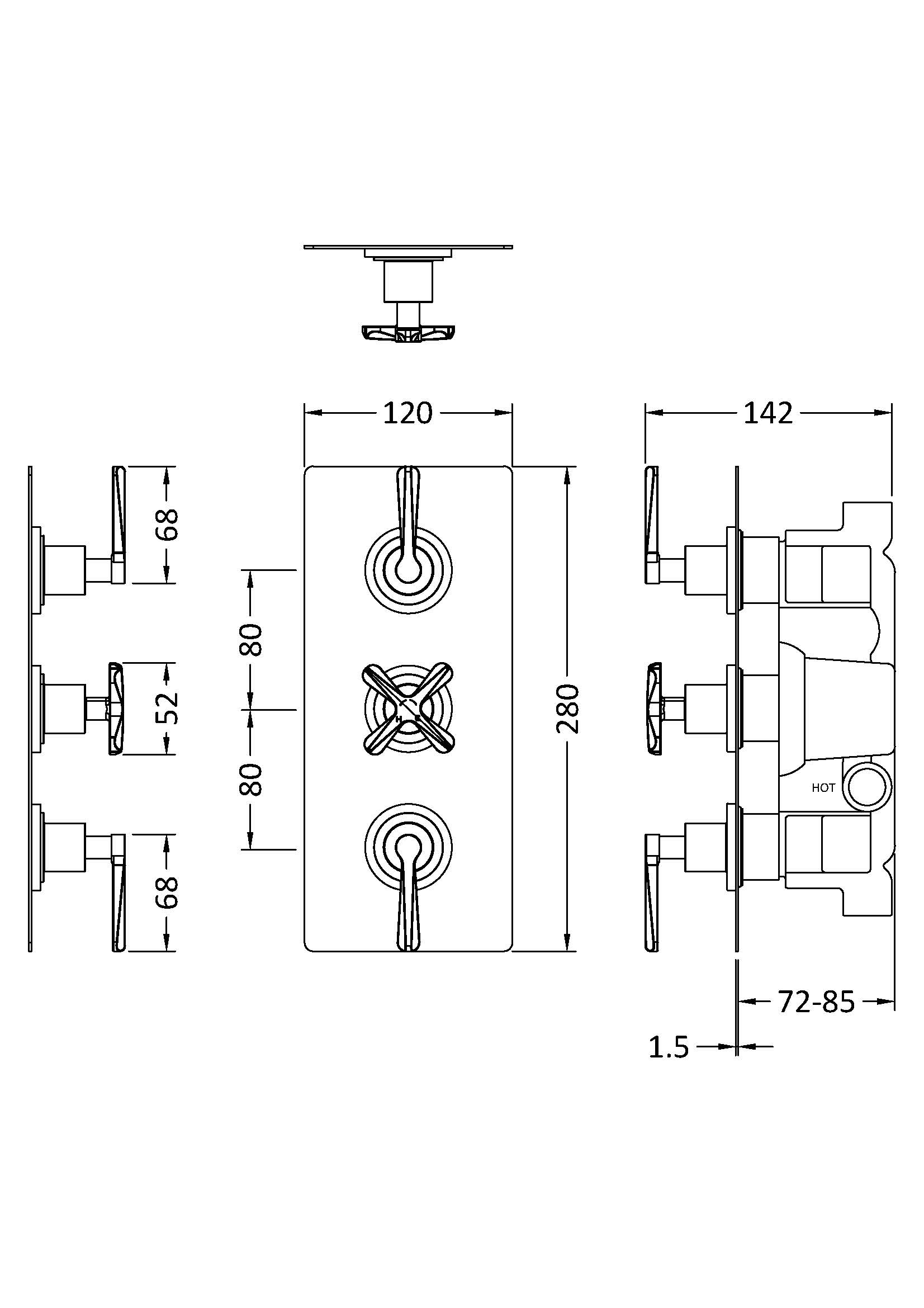

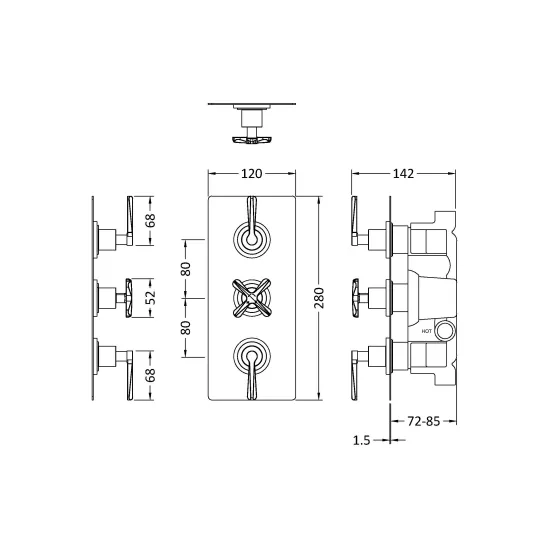

Dimensions & Capacity
Pipe Size
15 mm & 22 mm
Product Depth
136 mm
Product Height
280 mm
Product Width
120 mm
Design & Materials
Colour
Chrome
Number of Handles
3
Product Material
Brass Abs
Shower Valve Style Shape
Rectangular
Valve Handle Type/Shape
Rectangular
Features & Benefits
Stain Rust Resistant
Yes
Installation & Compatibility
Assembly Required
No
Connection Size
15 mm & 22 mm
What's Included
Cartridge Included
Yes
Handset Included
No
Head Included
No
Outlet Elbow Included
No
Valve Included
Yes
Technical Specifications
Control Type
Manual
Flow Rate 0.5Bar l/m
13.0000
Flow Rate 1Bar l/m
17.0000
Flow Rate 2Bar l/m
24.0000
Flow Rate 3Bar l/m
27.0000
Handle Type
Crosshead/Lever
Mount Type
Recessed/Wall
Operating Pressure
0.5 Bar
Valve Mount Type
Concealed Shower
Valve/Cartridge Type
1/4 Turn
Compliance & Warranty
Guarantee no. of years
5 Years
TMV2 Approved
No
TMV3 Approved
No
WRAS Approval Number
250602040
WRAS Approved
Yes
