Features & Benefits
- Contemporary design with modern chrome finish
- Accurate flow control
- High quality internal brassware for long life
- Full thermal protection to prevent scalding in the event of hot or cold water shut off
- Fully reversible cartridge meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
Details
General
Brand
Hudson Reed
Range
3 Outlet Valves
Style
Contemporary

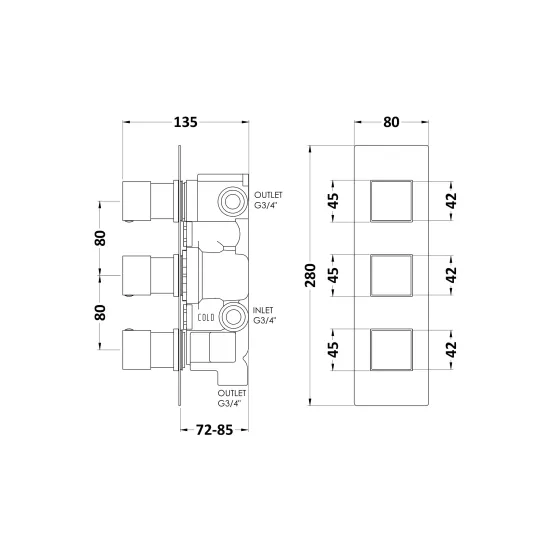

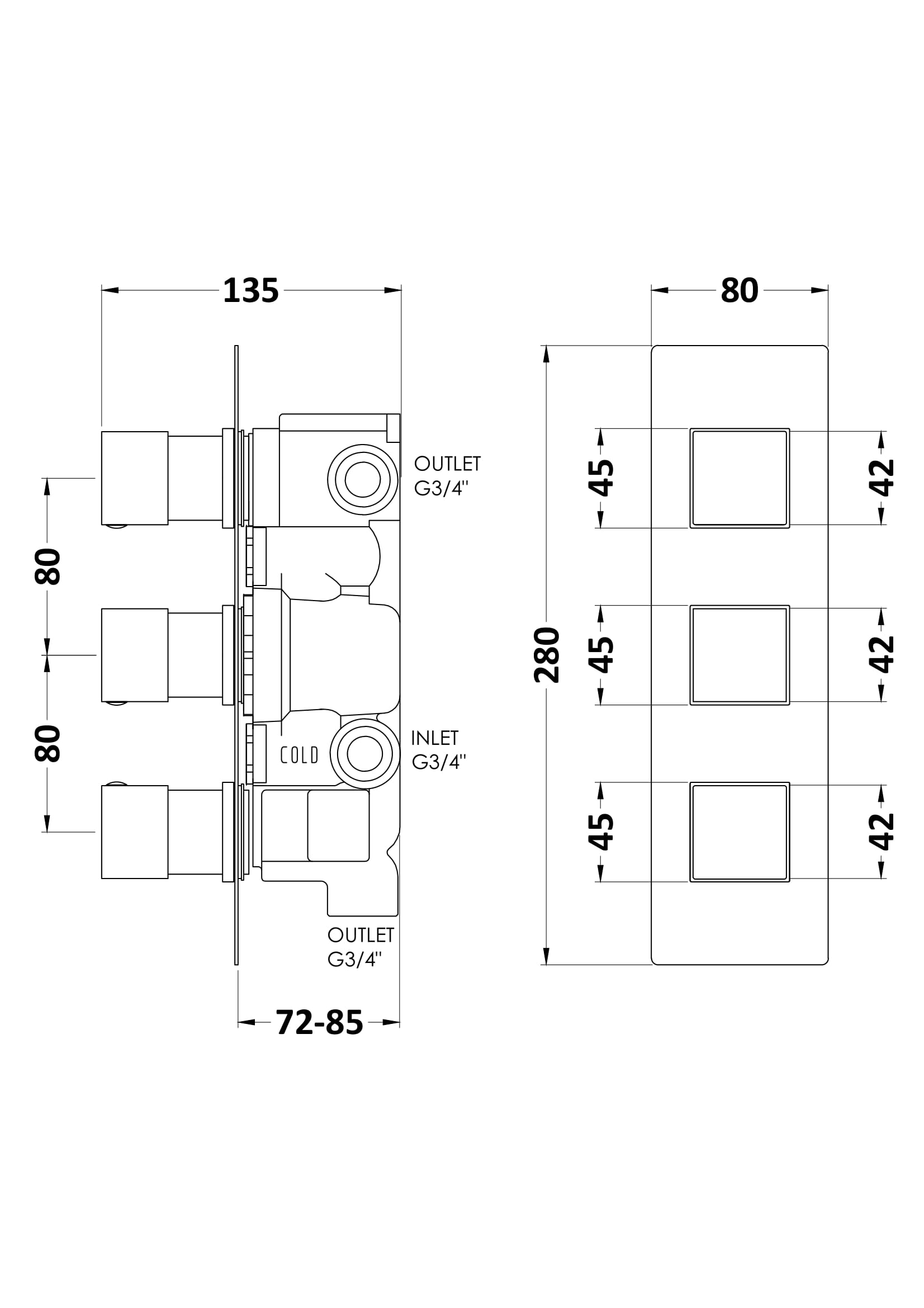

Dimensions & Capacity
Pipe Centres
125
Pipe Size
22 mm (3/4" bsp)
Product Depth
136 mm
Product Height
280 mm
Product Width
95 mm
Design & Materials
Colour
Chrome
Number of Handles
3
Product Material
Brass Abs
Shower Valve Style Shape
Square
Valve Handle Type/Shape
Square
Features & Benefits
Stain Rust Resistant
Yes
Installation & Compatibility
Assembly Required
No
Connection Size
22 mm (3/4" BSP)
What's Included
Includes Waste
Cartridge Included
Yes
Handset Included
No
Head Included
No
Valve Included
Yes
Technical Specifications
Control Type
Manual
Flow Rate 0.5Bar l/m
13.0000
Flow Rate 1Bar l/m
17.0000
Flow Rate 2Bar l/m
24.0000
Flow Rate 3Bar l/m
27.0000
Handle Type
Square
Mount Type
Wall Hung
Operating Pressure
0.5 Bar
Valve Mount Type
Concealed Shower
Valve/Cartridge Type
1/4 Turn
Compliance & Warranty
Guarantee no. of years
20 Years
TMV2 Approved
No
TMV3 Approved
No
WRAS Approval Number
250602040
WRAS Approved
Yes
