Features & Benefits
- This shower combines the elegance of traditional styling with the precision and technology of modern day design.
- Accurate flow control & thermostatic control to +/- 1 degree - even if the water pressure fluctuates.
- Full thermal protection to prevent scalding in the event of hot or cold water shut off.
- In the event of hot or cold water failure the valve will shut down to the relevant standard.
- The unique cartridge is highly resistant to calcium build up - even in hard water areas.
- Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers.
- With excellent flow rates - even at low pressure; our valves can deliver 5.
- 5 litres per minute at 0.
- 1 bar pressure.
- The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing.
- Simply remove the cartridge turn 180° and replace.
- Manufactured from solid brass to the highest quality.
Details
General
Brand
Bayswater
Style
Traditional

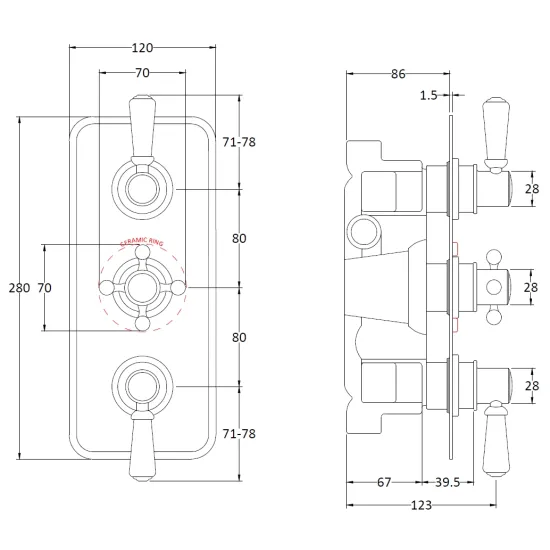

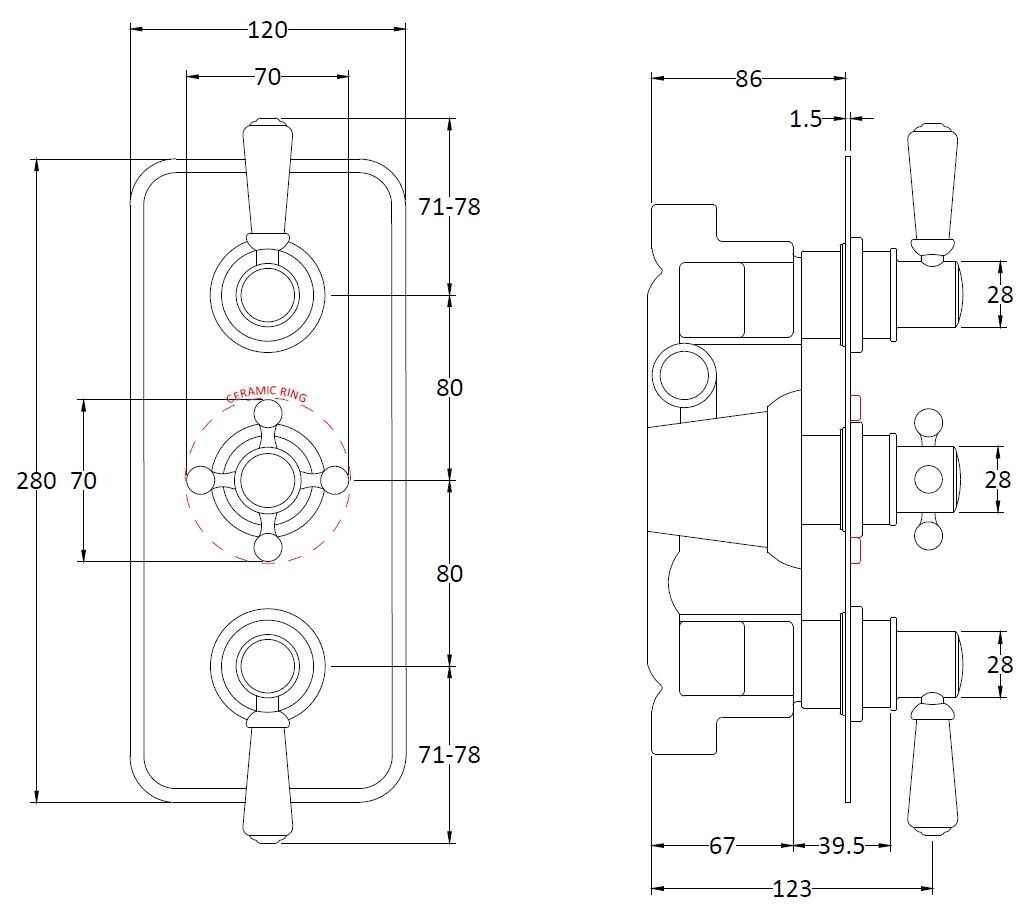

Dimensions & Capacity
Pipe Centres
150
Product Depth
135 mm
Product Height
320 mm
Product Width
120 mm
Design & Materials
Colour
Chrome
Product Material
Brass Abs
Features & Benefits
Easy Clean
No
Easy Clean Shower Head
No
Installation & Compatibility
Assembly Required
No
What's Included
Includes Waste
Cartridge Included
Yes
Handset Included
No
Head Included
No
Valve Included
Yes
Technical Specifications
Control Type
Manual
Flow Rate 0.1Bar l/m
5.5000
Flow Rate 0.5Bar l/m
14.0000
Flow Rate 1Bar l/m
20.0000
Flow Rate 2Bar l/m
29.0000
Flow Rate 3Bar l/m
44.0000
Mount Type
Wall Hung
Operating Pressure
0.1 Bar
Valve/Cartridge Type
1/4 Turn
Compliance & Warranty
Guarantee no. of years
20 Years
TMV2 Approved
No
TMV3 Approved
No
WRAS Approval Number
250602040
WRAS Approved
Yes
