Features & Benefits
- Minimalist sleek design.
- Can be fitted vertically or horizontally.
- Accurate flow control.
- Thermostatic control to +/- 2 degrees even if the water pressure fluctuates.
- Full thermal protection to prevent scalding in the event of hot or cold water shut off.
- In the event of hot or cold water failure the valve will shut down as per the relevant standard.
- The unique cartridge is highly resistant to calcium build up - even in hard water areas.
- Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers.
- Excellent flow rates - even at low pressure.
- The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing.
- Simply remove the cartridge turn 180° and replace.
- Manufactured from high quality brass & ABS.
Details
General
Brand
Synergy
Range
Montcada
Style
Contemporary

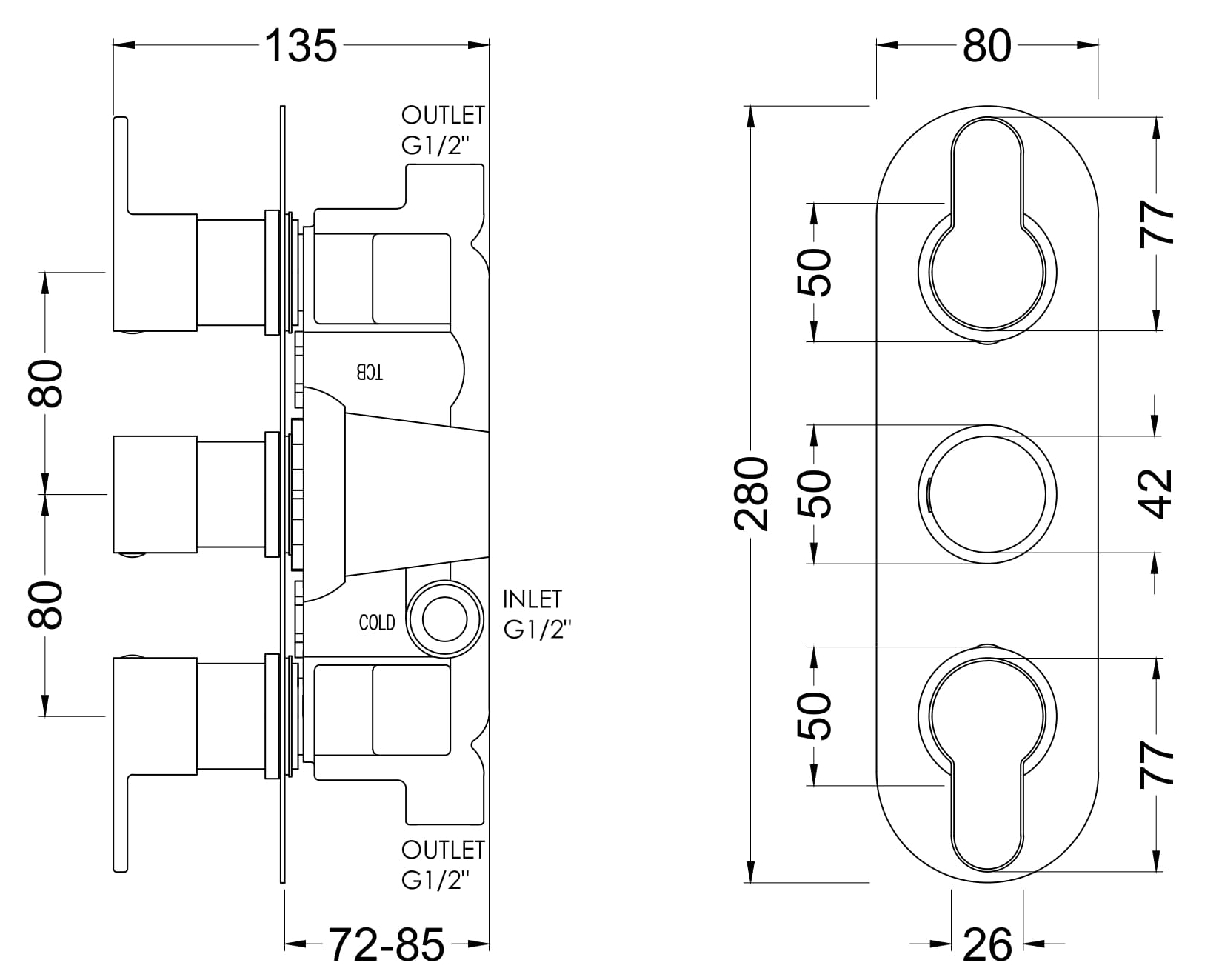

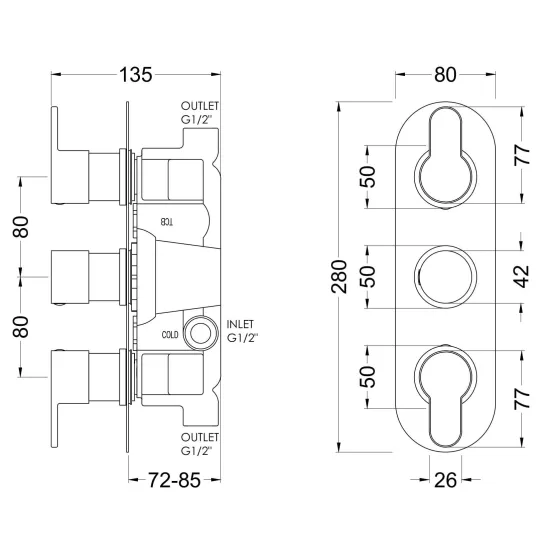

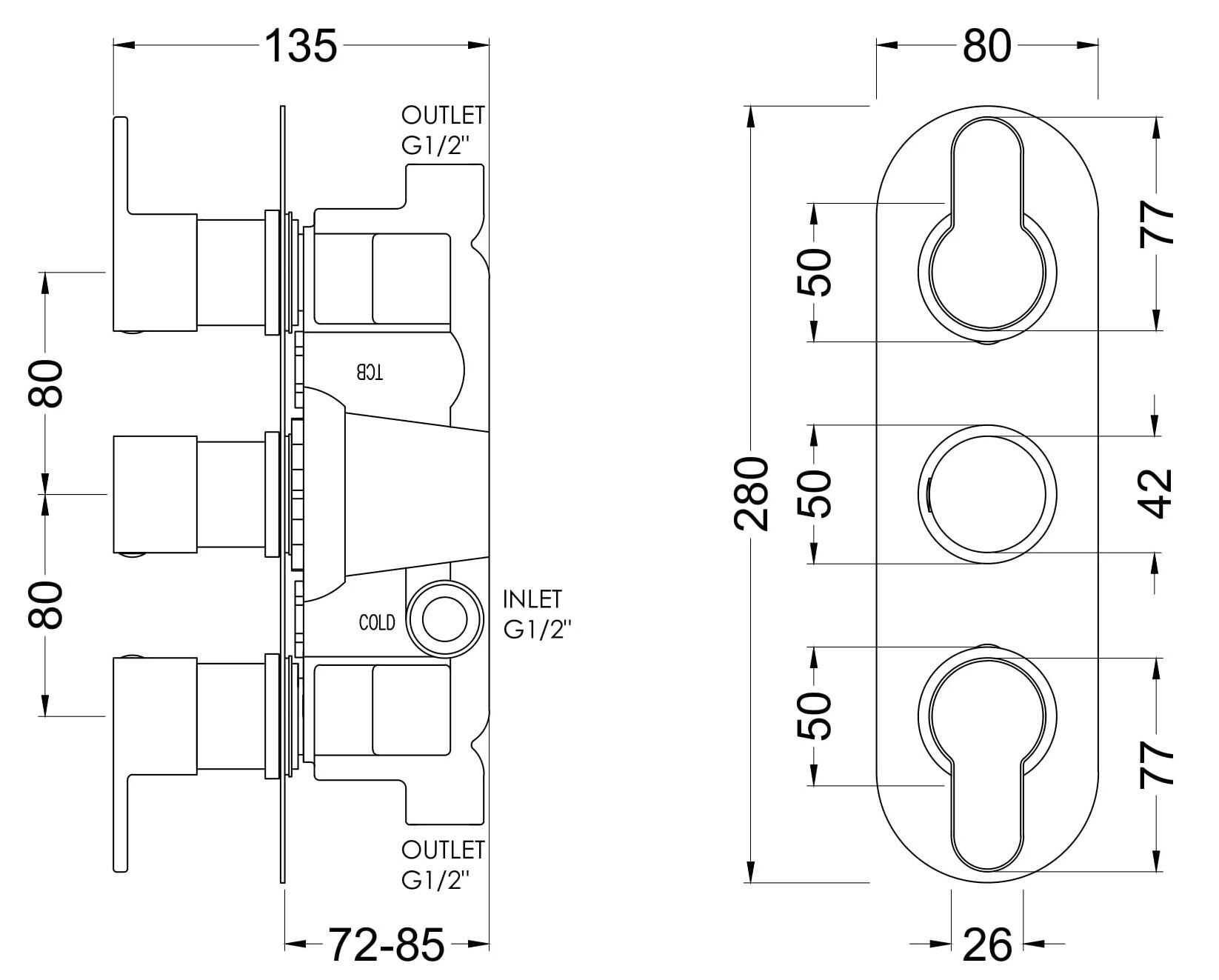

Dimensions & Capacity
Pipe Size
15 mm & 22 mm
Product Depth
136 mm
Product Height
280 mm
Product Width
80 mm
Design & Materials
Colour
Brushed Bronze
Number of Handles
3
Product Material
ABS,Brass
Shower Valve Style Shape
Racetrack
Valve Handle Type/Shape
Racetrack
Features & Benefits
Easy Clean
No
Installation & Compatibility
Connection Size
15 mm & 22 mm
What's Included
Cartridge Included
Yes
Handset Included
No
Head Included
No
Outlet Elbow Included
No
Valve Included
No
Technical Specifications
Control Type
Manual
Flow Rate 0.1Bar l/m
5.5000
Flow Rate 0.2Bar 1/m
7.1000
Flow Rate 0.5Bar l/m
14.0000
Flow Rate 1Bar l/m
20.0000
Flow Rate 2Bar l/m
29.0000
Flow Rate 3Bar l/m
44.0000
Handle Type
Lever/Round
Mount Type
Surface/Wall
Operating Pressure
0.1 Bar
Valve Mount Type
Concealed Shower
Valve/Cartridge Type
1/4 Turn
Compliance & Warranty
Guarantee no. of years
3 Years
TMV2 Approved
No
TMV3 Approved
No
WRAS Approved
NO
