Features & Benefits
- Minimalist sleek design.
- Can be fitted vertically or horizontally.
- Accurate flow control.
- Thermostatic control to +/- 2 degrees even if the water pressure fluctuates.
- Full thermal protection to prevent scalding in the event of hot or cold water shut off.
- In the event of hot or cold water failure the valve will shut down as per the relevant standard.
- The unique cartridge is highly resistant to calcium build up - even in hard water areas.
- Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers.
- Excellent flow rates - even at low pressure.
- The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing.
- Simply remove the cartridge turn 180° and replace.
- Manufactured from high quality brass & ABS.
Details
General
Brand
Nuie
Range
Windon
Style
Contemporary

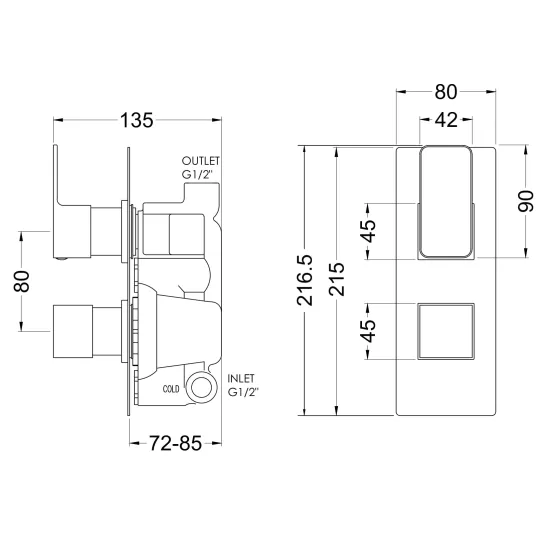

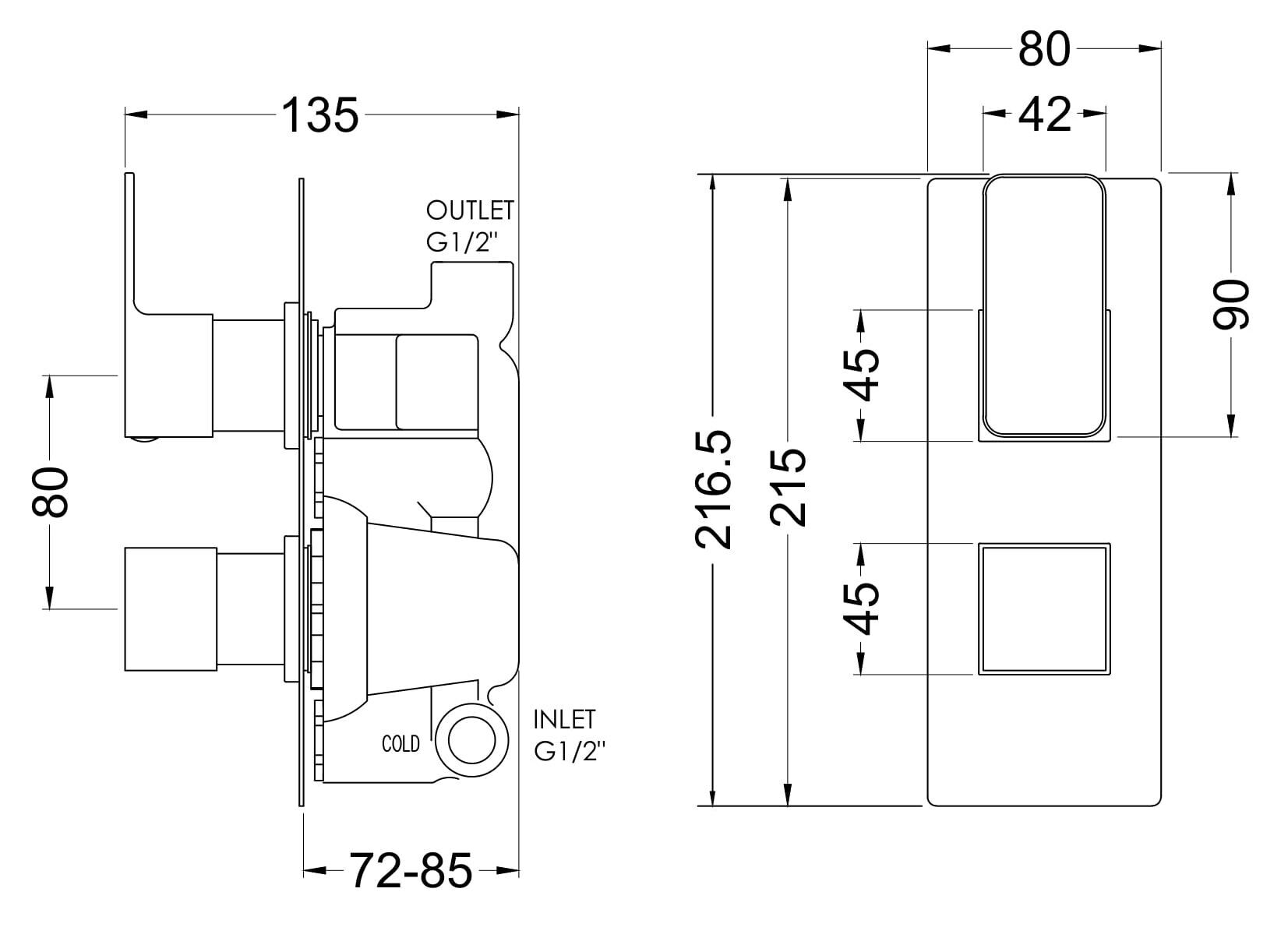

Dimensions & Capacity
Product Depth
135 mm
Product Height
215 mm
Product Width
80 mm
Design & Materials
Colour
Brushed Brass
Number of Handles
2
Product Material
ABS,Brass
Shower Valve Style Shape
Rectangular
Valve Handle Type/Shape
Rectangular
Features & Benefits
Easy Clean
No
What's Included
Body Jets Included
0.0000
Cartridge Included
Yes
Handset Included
No
Head Included
No
Outlet Elbow Included
No
Valve Included
No
Technical Specifications
Control Type
Manual
Flow Rate 0.1Bar l/m
5.5
Flow Rate 0.2Bar 1/m
7.1
Flow Rate 0.5Bar l/m
14
Flow Rate 1Bar l/m
20
Flow Rate 2Bar l/m
29
Flow Rate 3Bar l/m
44
Handle Type
Lever/Square
Mount Type
Surface/Wall
Operating Pressure
0.1 Bar
Valve Mount Type
Concealed Shower
Valve/Cartridge Type
1/4 Turn
Compliance & Warranty
Guarantee no. of years
3 Years
TMV2 Approved
No
TMV3 Approved
No
WRAS Approved
NO
