Features & Benefits
- Combining the elegance of traditional styling with the precision and technology of modern day design
- Includes rigid riser kit and bath spout
- Accurate flow control
- Thermostatic control to +/- 1 degree - even if the water pressure fluctuates
- Full thermal protection to prevent scalding in the event of hot or cold water shut off
- In the event of hot or cold water failure the valve will shut down as per the relevant standard
- The unique cartridge is highly resistant to calcium build up - even in hard water areas
- Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
- Excellent flow rates - even at low pressure
- The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
- Simply remove the cartridge turn 180° and replace
- Manufactured from solid brass
Details
General
Brand
Hudson Reed
Range
Topaz
Style
Traditional

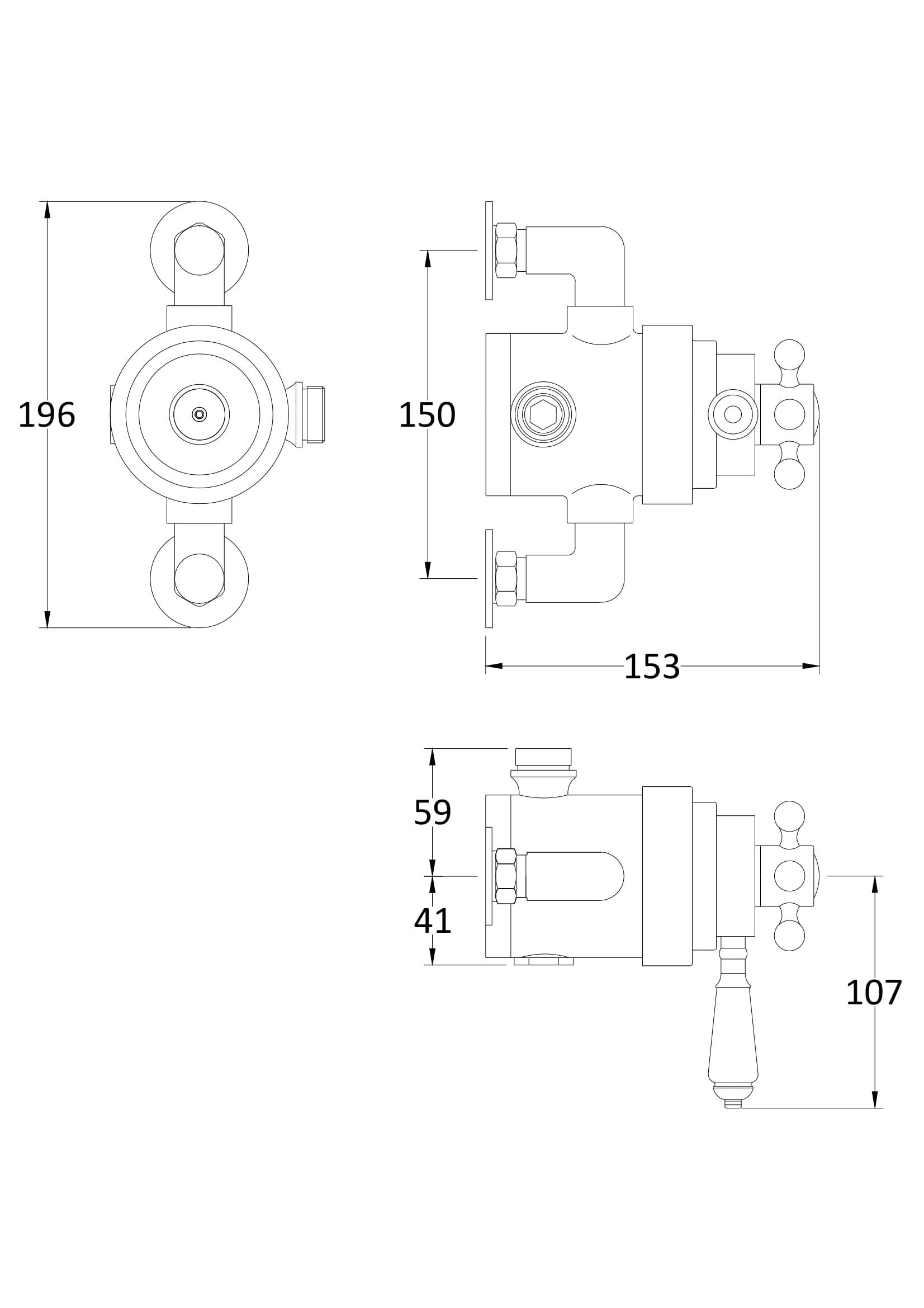

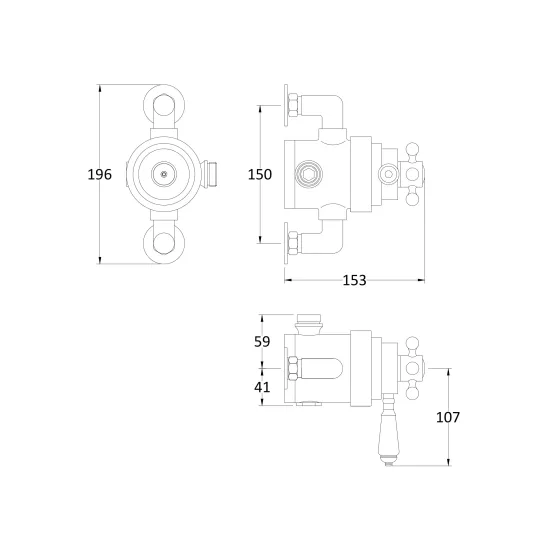

Dimensions & Capacity
Pipe Centres
150
Product Depth
153 mm
Product Height
166 mm
Product Width
196 mm
Design & Materials
Colour
Chrome
Number of Handles
2
Product Material
Brass
Features & Benefits
Stain Rust Resistant
Yes
Installation & Compatibility
Assembly Required
No
What's Included
Includes Waste
Cartridge Included
Yes
Handset Included
No
Head Included
No
Outlet Elbow Included
No
Valve Included
Yes
Technical Specifications
Control Type
Manual
Flow Rate 0.1Bar l/m
5.5000
Flow Rate 0.2Bar 1/m
6.5000
Flow Rate 0.5Bar l/m
14.5000
Flow Rate 1Bar l/m
22.0000
Flow Rate 2Bar l/m
30.0000
Flow Rate 3Bar l/m
35.0000
Handle Type
Lever
Mount Type
Wall Hung
Operating Pressure
0.1 Bar
Valve Mount Type
Exposed Shower
Compliance & Warranty
Guarantee no. of years
20 Years
TMV2 Approved
No
TMV3 Approved
No
WRAS Approved
NO
