Victrion Single Outlet Twin Thermostatic Concealed Shower Valve

CSA020CO
£705.00
2 In Stock
Please sign in to buy

This product cannot be added to the
cart because you are not logged in.

Add to wish list Add to comparison list

Vendor

Roxor

Description

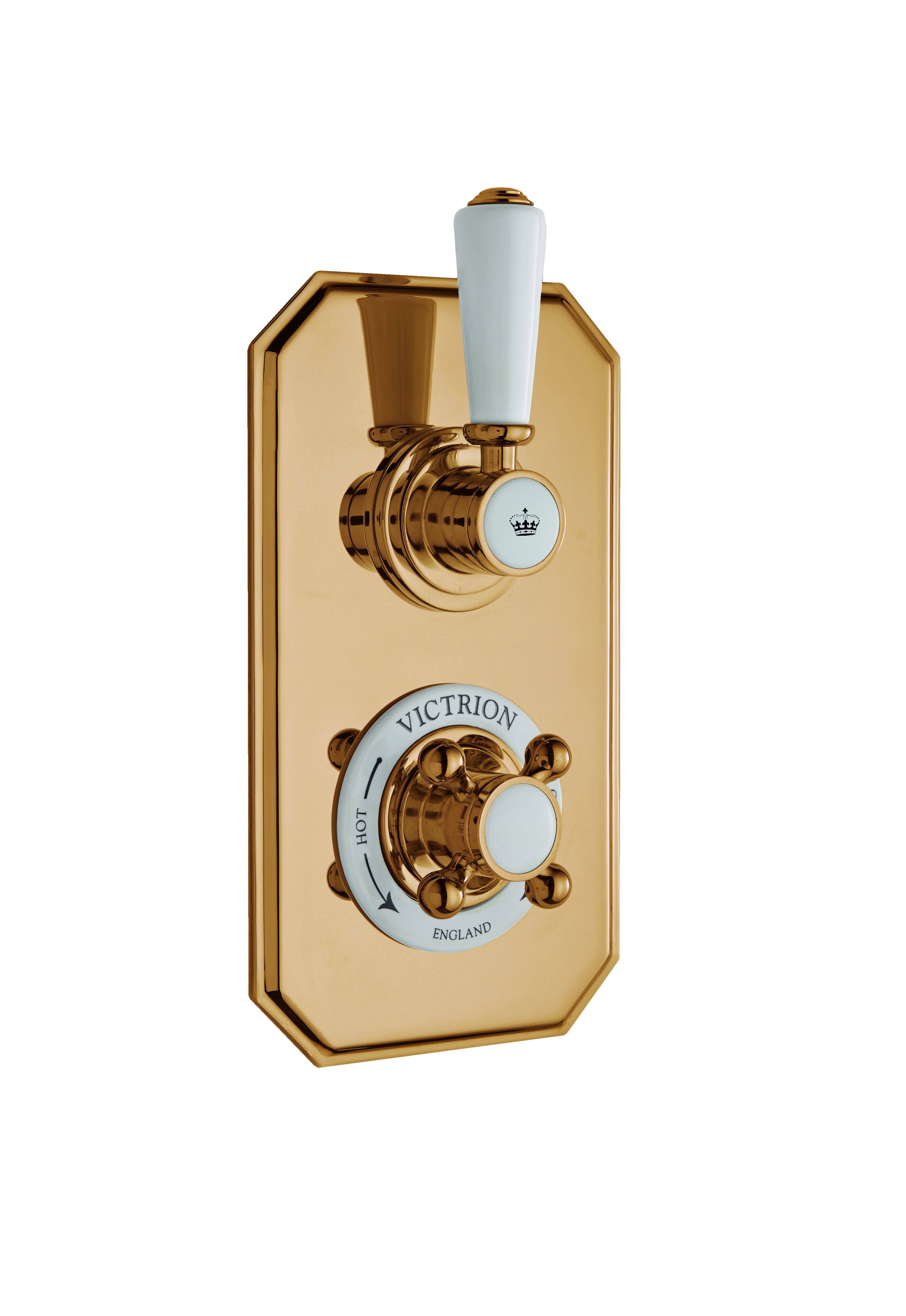

BC Designs Victrion Single Outlet Twin Thermostatic Concealed Shower Valve - Copper
Victrion Single Outlet Twin Thermostatic Concealed Shower Valve
£705.00
Please sign in to buy

This product cannot be added to the
cart because you are not logged in.

Add to comparison list

Features & Benefits

  • Combining the elegance of traditional styling with the precision and technology of modern day design
  • Copper finish
  • Accurate flow control
  • Thermostatic control to +/- 1 degree - even if the water pressure fluctuates
  • Full thermal protection to prevent scalding in the event of hot or cold water shut off
  • In the event of hot or cold water failure the valve will shut down to the relevant standard
  • The unique cartridge is highly resistant to calcium build up - even in hard water areas
  • Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
  • Excellent flow rates - even at low pressure
  • Our valves can deliver 5.5 litres per minute at 0.1 bar pressure
  • The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
  • Simply remove the cartridge turn 180° and replace
  • Manufactured from solid brass

Details

General

Brand
BC Designs
Style
Traditional

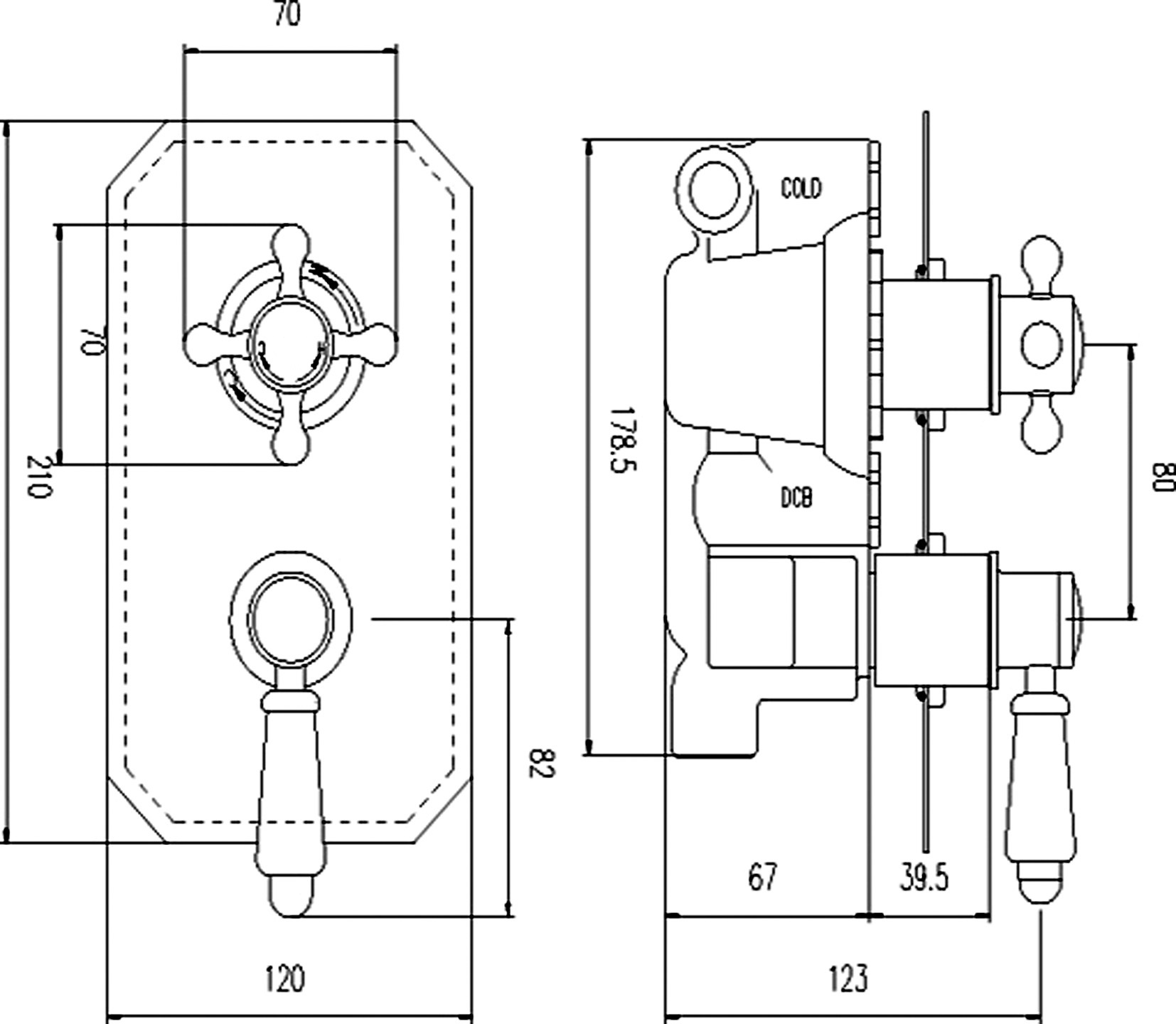

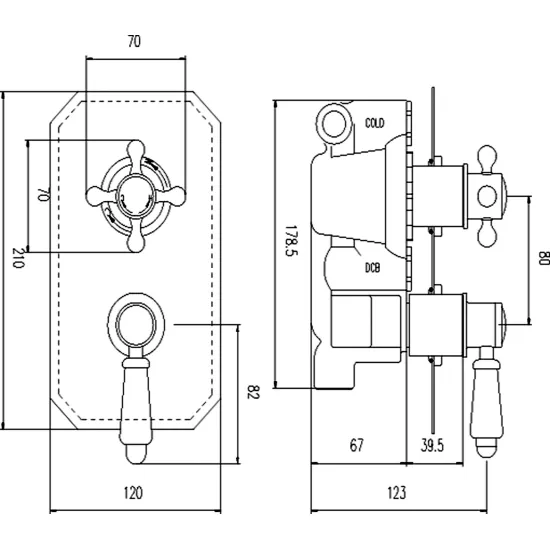

Dimensions & Capacity

Product Depth
135 mm
Product Height
230 mm
Product Width
120 mm

Design & Materials

Colour
Copper
Number of Handles
2
Product Material
Brass Abs
Shower Valve Style Shape
Bevelled
Valve Handle Type/Shape
Bevelled

Features & Benefits

Stain Rust Resistant
Yes

Installation & Compatibility

Assembly Required
No

What's Included

Includes Waste
Cartridge Included
Yes
Handset Included
No
Head Included
No
Outlet Elbow Included
No
Valve Included
Yes

Technical Specifications

Control Type
Manual
Flow Rate 0.1Bar l/m
5.5000
Flow Rate 0.2Bar 1/m
7.1000
Flow Rate 0.5Bar l/m
14.0000
Flow Rate 1Bar l/m
20.0000
Flow Rate 2Bar l/m
29.0000
Flow Rate 3Bar l/m
44.0000
Handle Type
Crosshead/Lever
Mount Type
Recessed/Wall
Operating Pressure
0.1 Bar
Valve Mount Type
Concealed Shower
Valve/Cartridge Type
1/4 Turn

Compliance & Warranty

Guarantee no. of years
1 Year
TMV2 Approved
No
TMV3 Approved
No
WRAS Approval Number
250602040
WRAS Approved
Yes
