Features & Benefits
- Bring a Victorian sensibility to your bathroom with this traditional shower
- Accurate flow control
- Thermostatic control to +/- 2 to 3 °C even if the water pressure fluctuates
- In the event of hot or cold water failure, the valve will shut down the water supply providing full thermal protection and prevents scalding
- The unique cartridge is highly resistant to calcium build up - even in hard water areas
- Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
- Excellent flow rates - even at low pressure
- The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
- Simply remove the cartridge turn 180° and replace
- Manufactured from solid brass
Details
General
Brand
Nuie
Style
Traditional

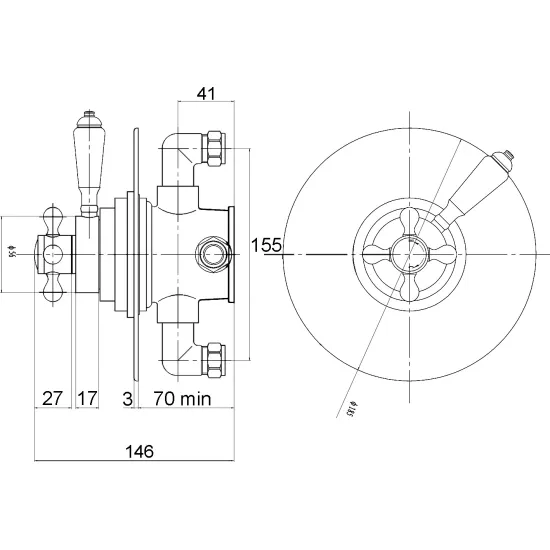

Dimensions & Capacity
Enclosure Adjust
-
Pipe Centres
155
Product Depth
146 mm
Product Height
196 mm
Product Width
185 mm
Design & Materials
Colour
Chrome
Number of Handles
2
Product Material
Brass
Shower Valve Style Shape
Round
Valve Handle Type/Shape
Round
Features & Benefits
Stain Rust Resistant
Yes
Installation & Compatibility
Assembly Required
No
What's Included
Includes Waste
Cartridge Included
Yes
Handset Included
No
Head Included
No
Valve Included
Yes
Technical Specifications
Control Type
Manual
Flow Rate 0.1Bar l/m
5.5000
Flow Rate 0.2Bar 1/m
6.5000
Flow Rate 0.5Bar l/m
14.5000
Flow Rate 1Bar l/m
22.0000
Flow Rate 2Bar l/m
30.0000
Flow Rate 3Bar l/m
35.0000
Handle Type
Crosshead/Lever
Mount Type
Wall Hung
Operating Pressure
0.1 Bar
Valve Mount Type
Concealed Shower
Valve/Cartridge Type
1/4 Turn
Compliance & Warranty
Guarantee no. of years
5 Years
TMV2 Approved
No
TMV3 Approved
No
WRAS Approved
NO
