Features & Benefits
- Bring a Victorian sensibility to your bathroom with this traditional shower.
- Accurate flow control.
- Thermostatic control to +/- 2 to 3 °C even if the water pressure fluctuates.
- In the event of hot or cold water failure, the valve will shut down the water supply providing full thermal protection and prevents scalding.
- The patented cartridge is highly resistant to calcium build up - even in hard water areas.
- Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers.
- Excellent flow rates - even at low pressure.
- The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing.
- Simply remove the cartridge turn 180° and replace.
- Manufactured from solid brass.
Details
General
Brand
Nuie
Style
Traditional

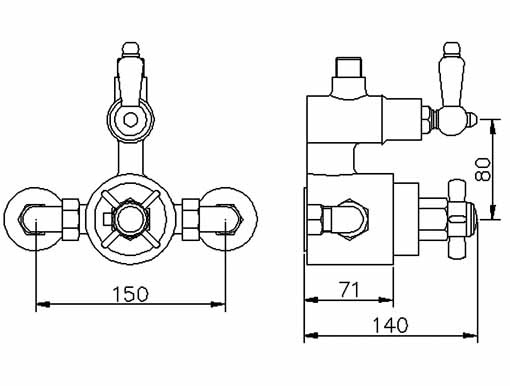

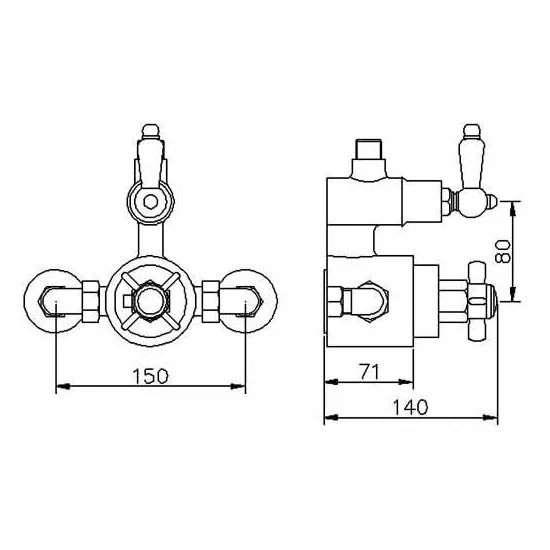

Dimensions & Capacity
Enclosure Adjust
-
Pipe Centres
150
Product Depth
140 mm
Product Height
140 mm
Product Width
150 mm
Design & Materials
Colour
Chrome
Number of Handles
2
Product Material
Brass Abs
Shower Head Shape
Round
Features & Benefits
Stain Rust Resistant
Yes
Installation & Compatibility
Assembly Required
No
What's Included
Includes Waste
Cartridge Included
Yes
Handset Included
No
Head Included
Yes
Outlet Elbow Included
No
Valve Included
Yes
Technical Specifications
Control Type
Manual
Flow Rate 0.1Bar l/m
4.5000
Flow Rate 0.2Bar 1/m
6.5000
Flow Rate 0.5Bar l/m
13.0000
Flow Rate 1Bar l/m
18.5000
Flow Rate 2Bar l/m
26.0000
Flow Rate 3Bar l/m
33.0000
Handle Type
Crosshead/Lever
Mount Type
Surface/Wall
Operating Pressure
0.1 Bar
Valve Mount Type
Exposed Shower
Valve/Cartridge Type
1/4 Turn
Compliance & Warranty
Guarantee no. of years
5 Years
TMV2 Approved
No
TMV3 Approved
No
WRAS Approved
NO
