Features & Benefits
- Minimalist sleek design
- Accurate flow control
- Thermostatic control to +/- 1 degree - even if the water pressure fluctuates
- Full thermal protection to prevent scalding in the event of hot or cold water shut off
- In the event of hot or cold water failure the valve will shut down as per the relevant standard
- The unique cartridge is highly resistant to calcium build up - even in hard water areas
- Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
- Excellent flow rates - even at low pressure
- Our valves can deliver 5.5 litres per minute at 0.1 bar pressure
- The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
- Simply remove the cartridge turn 180° and replace
- Manufactured from solid brass
Details
General
Brand
Hudson Reed
Range
Tec Dual
Style
Contemporary

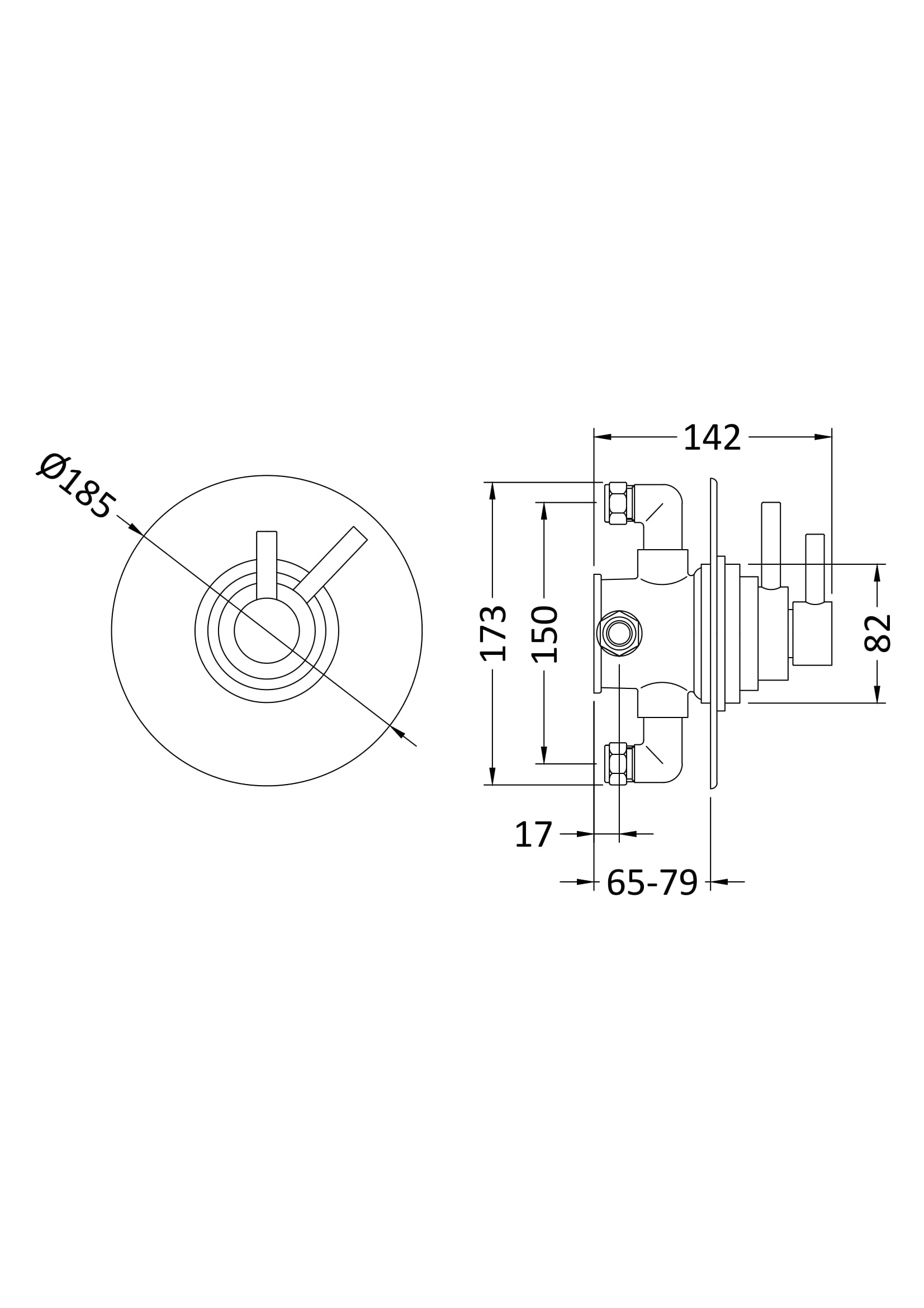

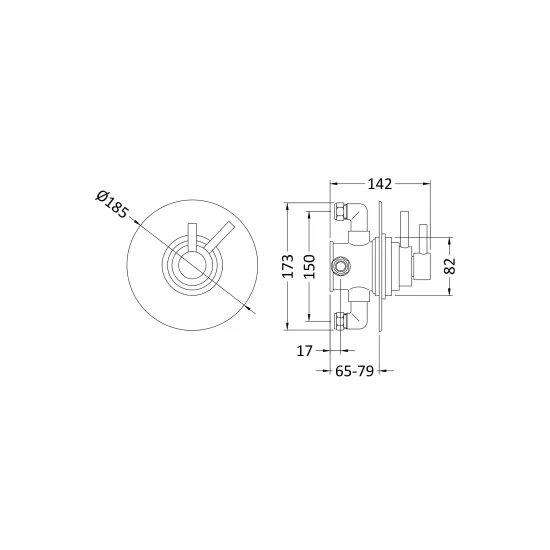

Dimensions & Capacity
Product Depth
142 mm
Product Height
185 mm
Product Width
185 mm
Design & Materials
Colour
Chrome
Number of Handles
2
Product Material
Brass
Shower Head Shape
Round
Shower Valve Style Shape
Round
Valve Handle Type/Shape
Round
Features & Benefits
Stain Rust Resistant
Yes
Installation & Compatibility
Assembly Required
No
What's Included
Cartridge Included
Yes
Handset Included
No
Head Included
No
Outlet Elbow Included
No
Valve Included
Yes
Technical Specifications
Control Type
Manual
Flow Rate 0.1Bar l/m
5.5000
Flow Rate 0.2Bar 1/m
6.5000
Flow Rate 0.5Bar l/m
14.5000
Flow Rate 1Bar l/m
22.0000
Flow Rate 2Bar l/m
30.0000
Flow Rate 3Bar l/m
35.0000
Handle Type
Lever
Mount Type
Recessed/Wall
Operating Pressure
0.1 Bar
Valve Mount Type
Concealed Shower
Valve/Cartridge Type
1/4 Turn
Compliance & Warranty
Guarantee no. of years
20 Years
TMV2 Approved
No
TMV3 Approved
No
WRAS Approved
NO
