Features & Benefits
- Sleek design with stunning chrome finish
- Suitable for use with all systems: gravity fed pumped unvented high pressure of fully modulated combi-boilers
- Accurate flow control
- Excellent flow rates
- High quality internal brassware
Details
General
Brand
Hudson Reed
Range
1 Outlet Valves
Style
Contemporary

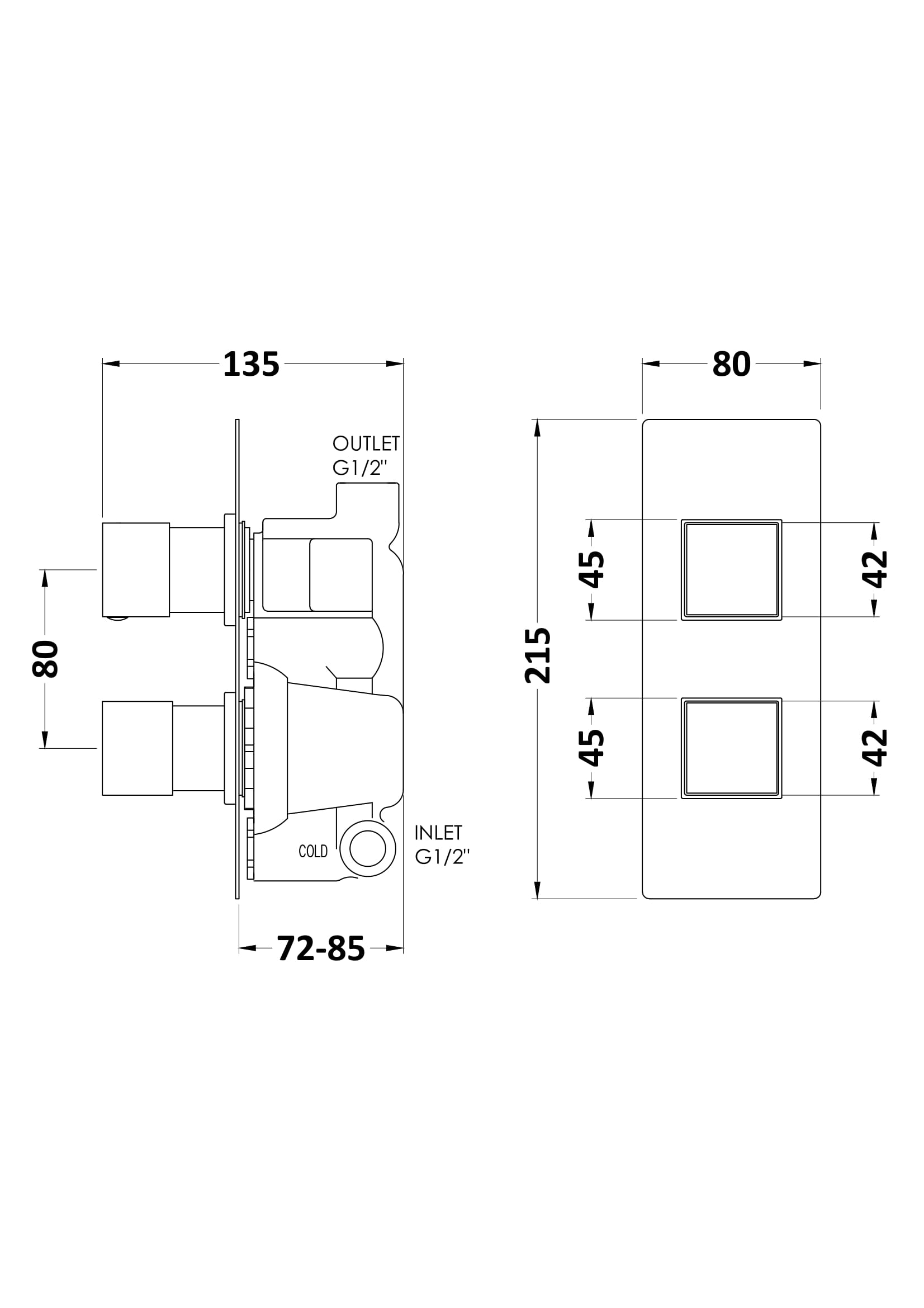

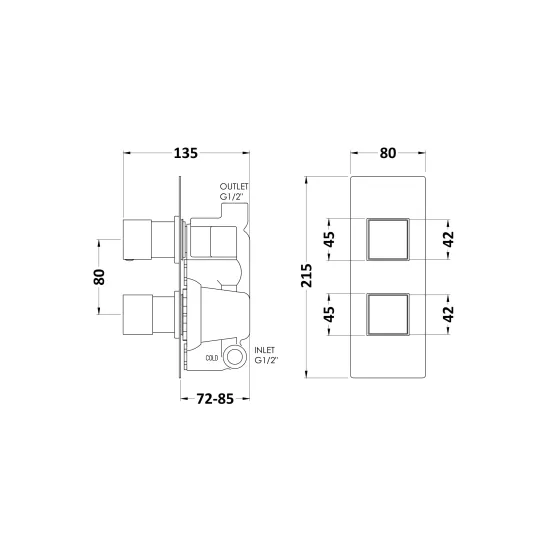

Dimensions & Capacity
Product Depth
136 mm
Product Height
215 mm
Product Width
80 mm
Design & Materials
Colour
Chrome
Number of Handles
2
Product Material
Brass Abs
Shower Valve Style Shape
Square
Valve Handle Type/Shape
Square
Features & Benefits
Stain Rust Resistant
Yes
Installation & Compatibility
Assembly Required
No
What's Included
Cartridge Included
Yes
Handset Included
No
Head Included
No
Outlet Elbow Included
No
Valve Included
Yes
Technical Specifications
Control Type
Manual
Flow Rate 0.1Bar l/m
5.5000
Flow Rate 0.2Bar 1/m
7.1000
Flow Rate 0.5Bar l/m
14.0000
Flow Rate 1Bar l/m
20.0000
Flow Rate 2Bar l/m
29.0000
Flow Rate 3Bar l/m
44.0000
Handle Type
Square
Mount Type
Recessed/Wall
Operating Pressure
0.1 Bar
Valve Mount Type
Concealed Shower
Valve/Cartridge Type
1/4 Turn
Compliance & Warranty
Guarantee no. of years
20 Years
TMV2 Approved
No
TMV3 Approved
No
WRAS Approval Number
250602040
WRAS Approved
Yes
