Features & Benefits
- Bring a Victorian sensibility to your bathroom with this traditional shower.
- Accurate flow control & thermostatic control to +/- 2 to 3 °C even if the water pressure fluctuates.
- Full thermal protection to prevent scalding in the event of hot or cold water shut off.
- In the event of hot or cold water failure the valve will shut down as per the relevant standard.
- The unique cartridge is highly resistant to calcium build up - even in hard water areas.
- Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers.
- Excellent flow rates - even at low pressure.
- The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing.
- Simply remove the cartridge turn 180° and replace.
- Manufactured from solid brass to the highest quality.
Details
General
Brand
Bayswater
Style
Traditional

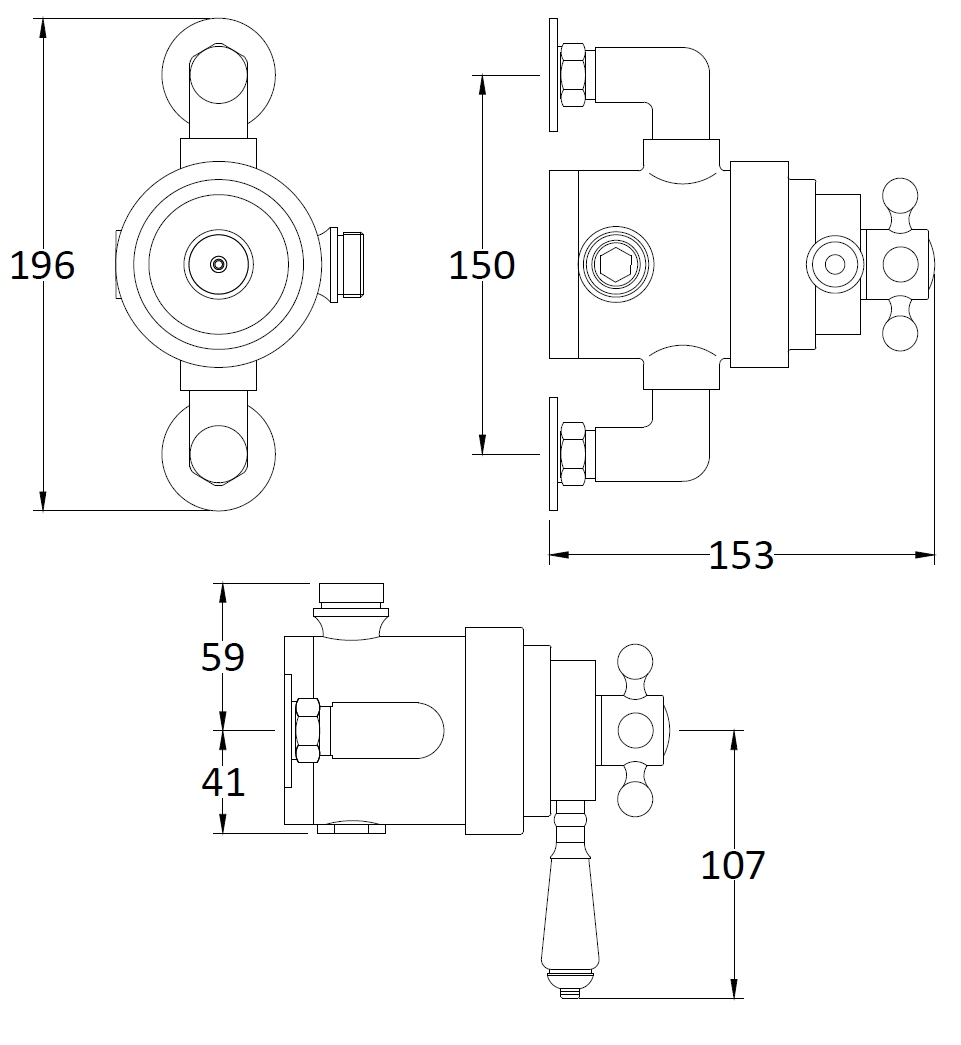

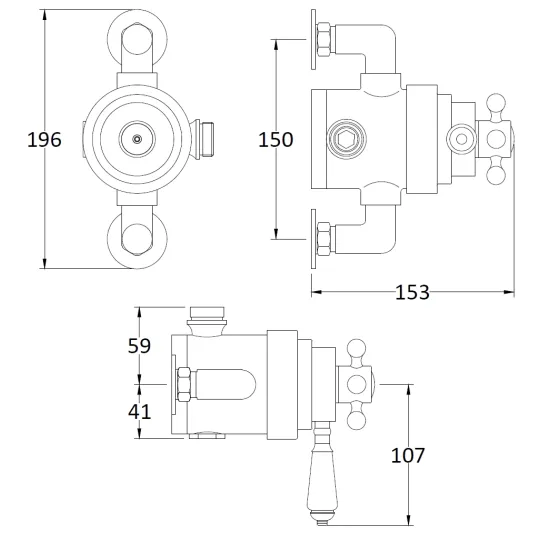

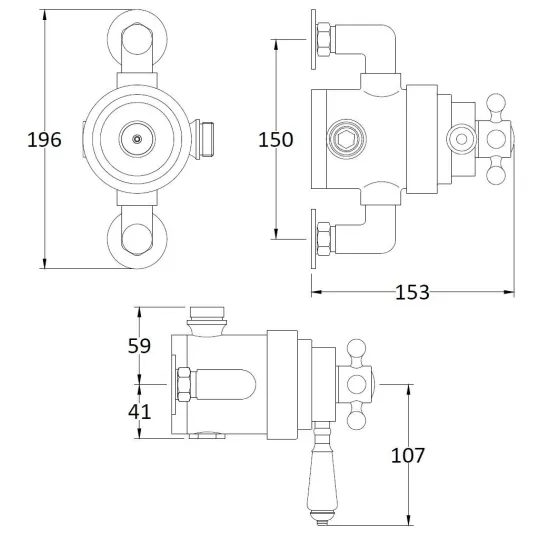

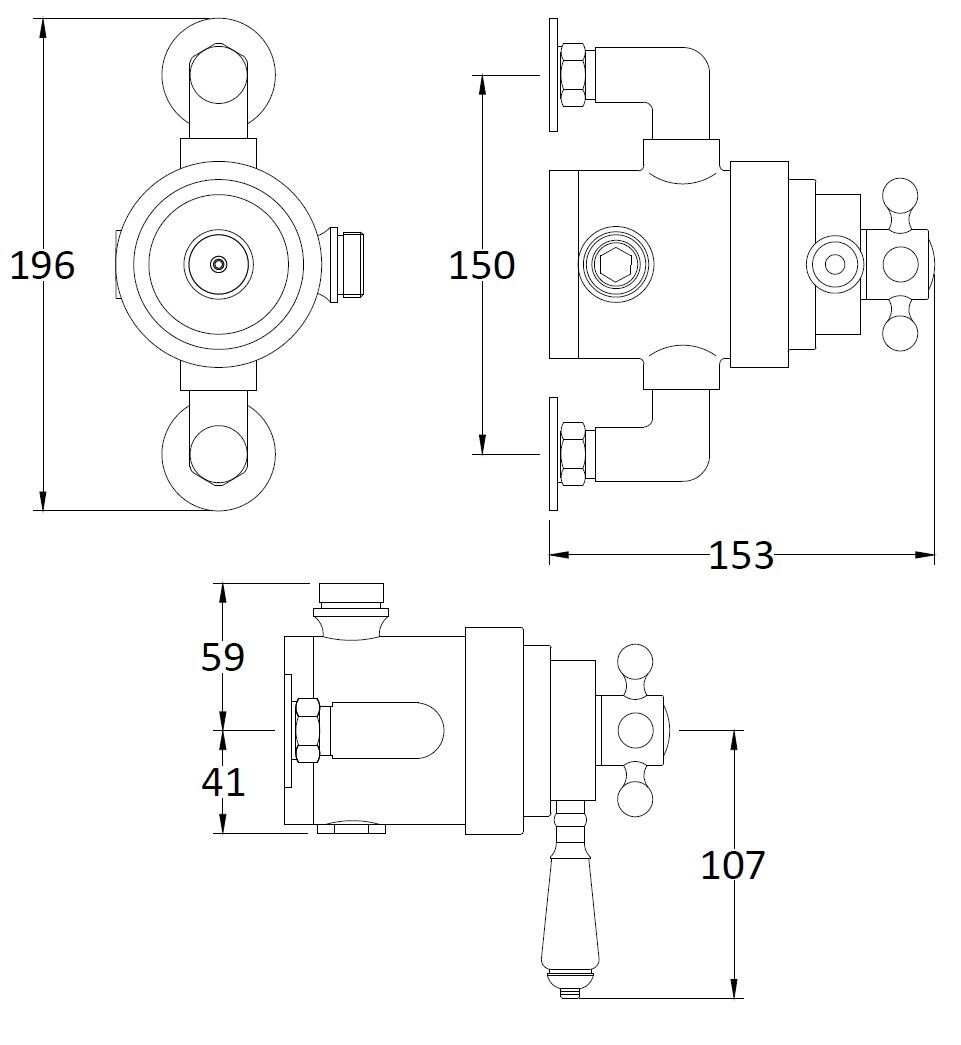

Dimensions & Capacity
Pipe Centres
150
Product Depth
153 mm
Product Height
166 mm
Product Width
196 mm
Design & Materials
Colour
Chrome
Product Material
Brass
Features & Benefits
Easy Clean
No
Installation & Compatibility
Assembly Required
No
What's Included
Cartridge Included
Yes
Handset Included
No
Head Included
No
Outlet Elbow Included
No
Valve Included
Yes
Technical Specifications
Control Type
Manual
Flow Rate 0.1Bar l/m
5.5000
Flow Rate 0.5Bar l/m
14.5000
Flow Rate 1Bar l/m
22.0000
Flow Rate 2Bar l/m
30.0000
Flow Rate 3Bar l/m
35.0000
Mount Type
Surface/Wall
Operating Pressure
0.1 Bar
Valve/Cartridge Type
1/4 Turn
Compliance & Warranty
Guarantee no. of years
20 Years
TMV2 Approved
No
TMV3 Approved
No
WRAS Approved
NO
