Features & Benefits
- Combining the elegance of traditional styling with the precision and technology of modern day design
- Brushed copper finish
- Includes rigid riser kit and bath spout
- Accurate flow control
- Thermostatic control to +/- 1 degree - even if the water pressure fluctuates
- Full thermal protection to prevent scalding in the event of hot or cold water shut off
- In the event of hot or cold water failure the valve will shut down to the relevant standard
- The unique cartridge is highly resistant to calcium build up - even in hard water areas
- Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
- Excellent flow rates - even at low pressure
- Our valves can deliver 5.5 litres per minute at 0.1 bar pressure
- The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
- Simply remove the cartridge turn 180° and replace
- Manufactured from solid brass
Details
General
Brand
BC Designs
Style
Traditional

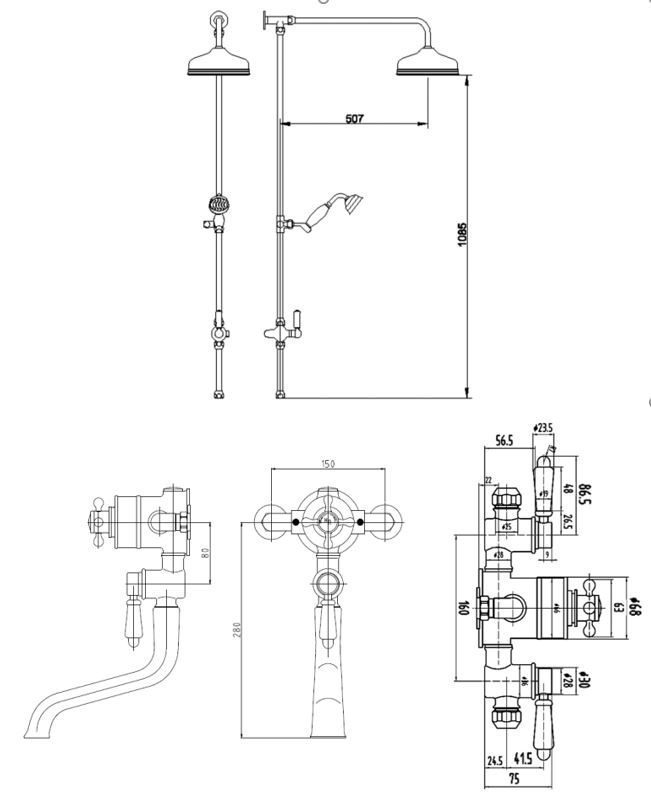

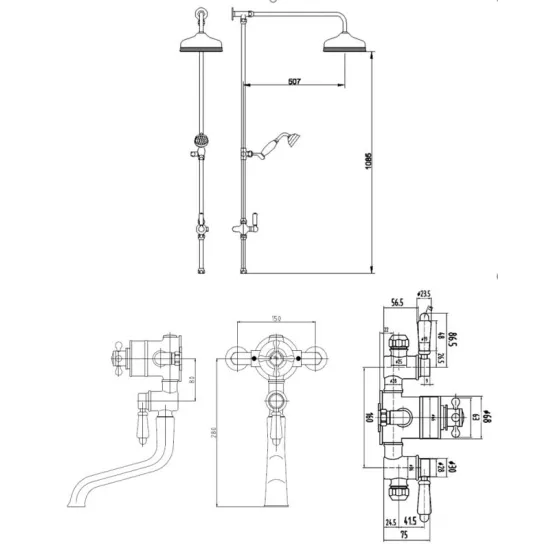

Dimensions & Capacity
Pipe Centres
150
Product Depth
667 mm
Product Height
1440 mm
Product Width
195 mm
Design & Materials
Colour
Copper
Number of Handles
3
Product Material
Brass
Shower Head Shape
Apron
Features & Benefits
Stain Rust Resistant
Yes
Installation & Compatibility
Assembly Required
No
What's Included
Includes Waste
Cartridge Included
Yes
Handset Included
Yes
Head Included
Yes
Valve Included
Yes
Technical Specifications
Control Type
Manual
Flow Rate 0.1Bar l/m
4.5000
Flow Rate 0.5Bar l/m
13.0000
Flow Rate 1Bar l/m
18.5000
Flow Rate 2Bar l/m
26.0000
Flow Rate 3Bar l/m
33.0000
Handle Type
Crosshead/Lever
Mount Type
Wall Hung
Operating Pressure
0.5 Bar
Valve Mount Type
Exposed Shower
Valve/Cartridge Type
1/4 Turn
Compliance & Warranty
Guarantee no. of years
1 Year
TMV2 Approved
No
TMV3 Approved
No
WRAS Approved
NO
