Features & Benefits
- Classic timeless design
- Luxury crosshead handle with white indices
- Brushed chrome finish
- Suitable for low pressure systems
- Ceramic disc technology for long life and smooth operation
- High quality brass internals
Details
General
Brand
BC Designs
Style
Traditional

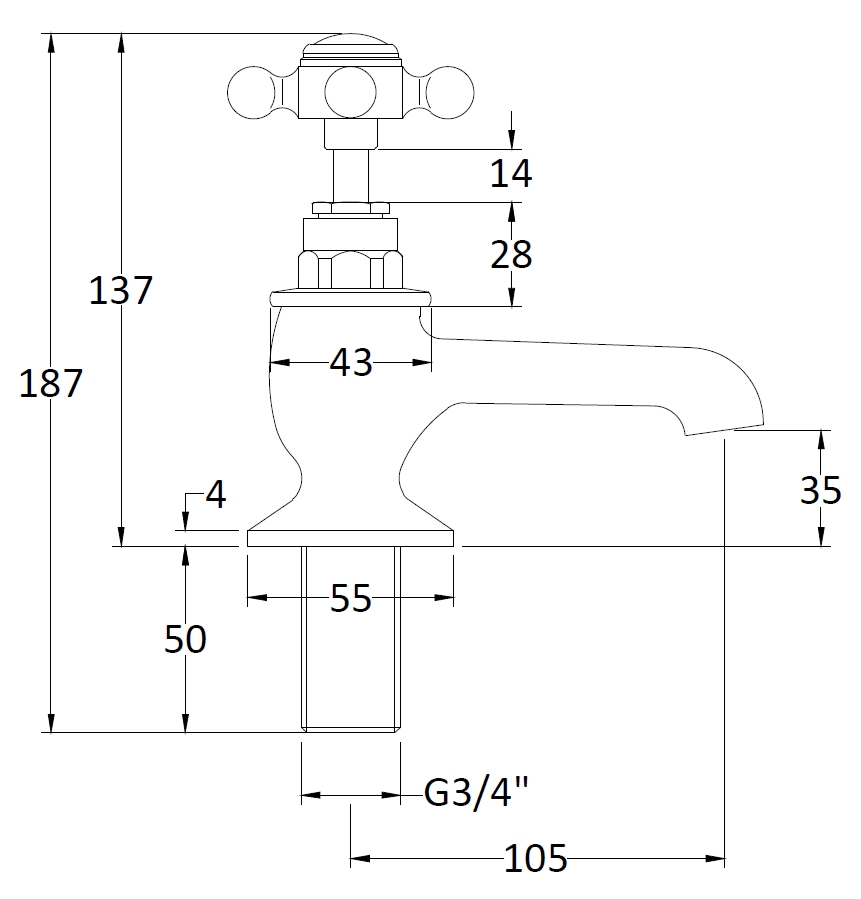

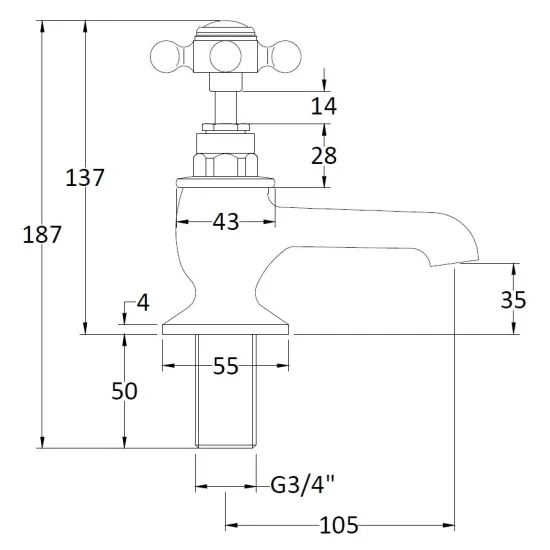

Dimensions & Capacity
Height Of Spout
35 mm
Pipe Size
22 mm (3/4" bsp)
Product Depth
119 mm
Product Height
137 mm
Product Width
66 mm
Tap Spout Projection
105 mm
Design & Materials
Colour
Brushed Chrome
Number of Handles
2
Product Material
Brass
Installation & Compatibility
Assembly Required
No
Connection Size
22 mm (3/4" BSP)
What's Included
Includes Waste
No
Cartridge Included
Yes
Technical Specifications
Control Type
Manual
Flow Rate 0.1Bar l/m
8.4000
Flow Rate 0.5Bar l/m
21.3000
Flow Rate 1Bar l/m
30.7000
Flow Rate 2Bar l/m
43.7000
Flow Rate 3Bar l/m
46.8000
Handle Type
Crosshead
Mount Type
Deck
Operating Pressure
0.1 Bar
Valve/Cartridge Type
1/4 Turn Ceramic Disc
Compliance & Warranty
Guarantee no. of years
1 Year
TMV2 Approved
No
TMV3 Approved
No
WRAS Approved
NO
