Features & Benefits
- Luxury crosshead handle with coloured indices
- Traditional hexagonal collar
- Suitable for low pressure systems
- Ceramic disc technology for long life and smooth operation
- High quality brass internals with luxury brushed brass finish
Details
General
Brand
Hudson Reed
Range
Topaz
Style
Traditional

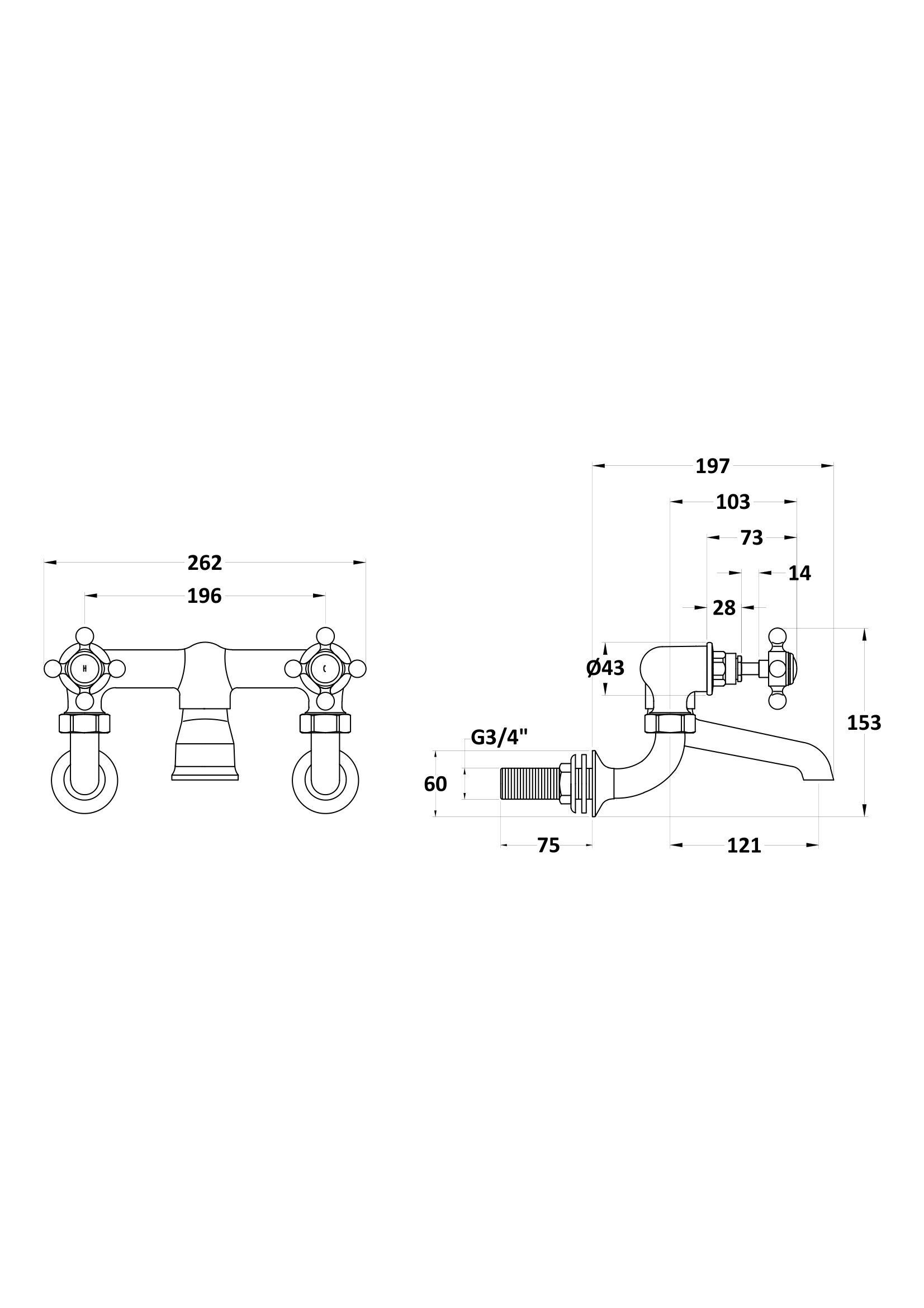

Dimensions & Capacity
Pipe Centres
196
Pipe Size
22 mm (3/4" bsp)
Product Depth
197 mm
Product Height
142 mm
Product Width
262 mm
Tap Spout Projection
121 mm
Design & Materials
Colour
Brushed Brass
Number of Handles
2
Product Material
Brass
Installation & Compatibility
Assembly Required
No
Connection Size
22 mm (3/4" BSP)
What's Included
Includes Waste
No
Cartridge Included
Yes
Handset Included
Yes
Technical Specifications
Control Type
Manual
Flow Rate 0.1Bar l/m
8.4
Flow Rate 0.5Bar l/m
21.3
Flow Rate 1Bar l/m
30.7
Flow Rate 2Bar l/m
43.7
Flow Rate 3Bar l/m
46.8
Handle Type
Crosshead
Mount Type
Wall Hung
Operating Pressure
0.2 Bar
Valve/Cartridge Type
1/4 Turn Ceramic Disc
Compliance & Warranty
Guarantee no. of years
3 Years
TMV2 Approved
No
TMV3 Approved
No
WRAS Approved
NO
