Features & Benefits

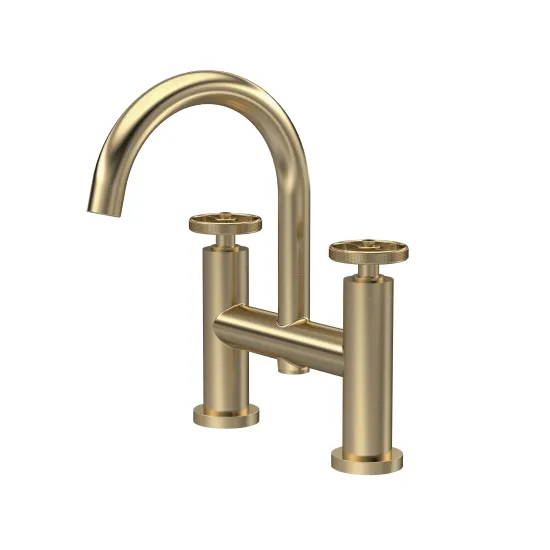

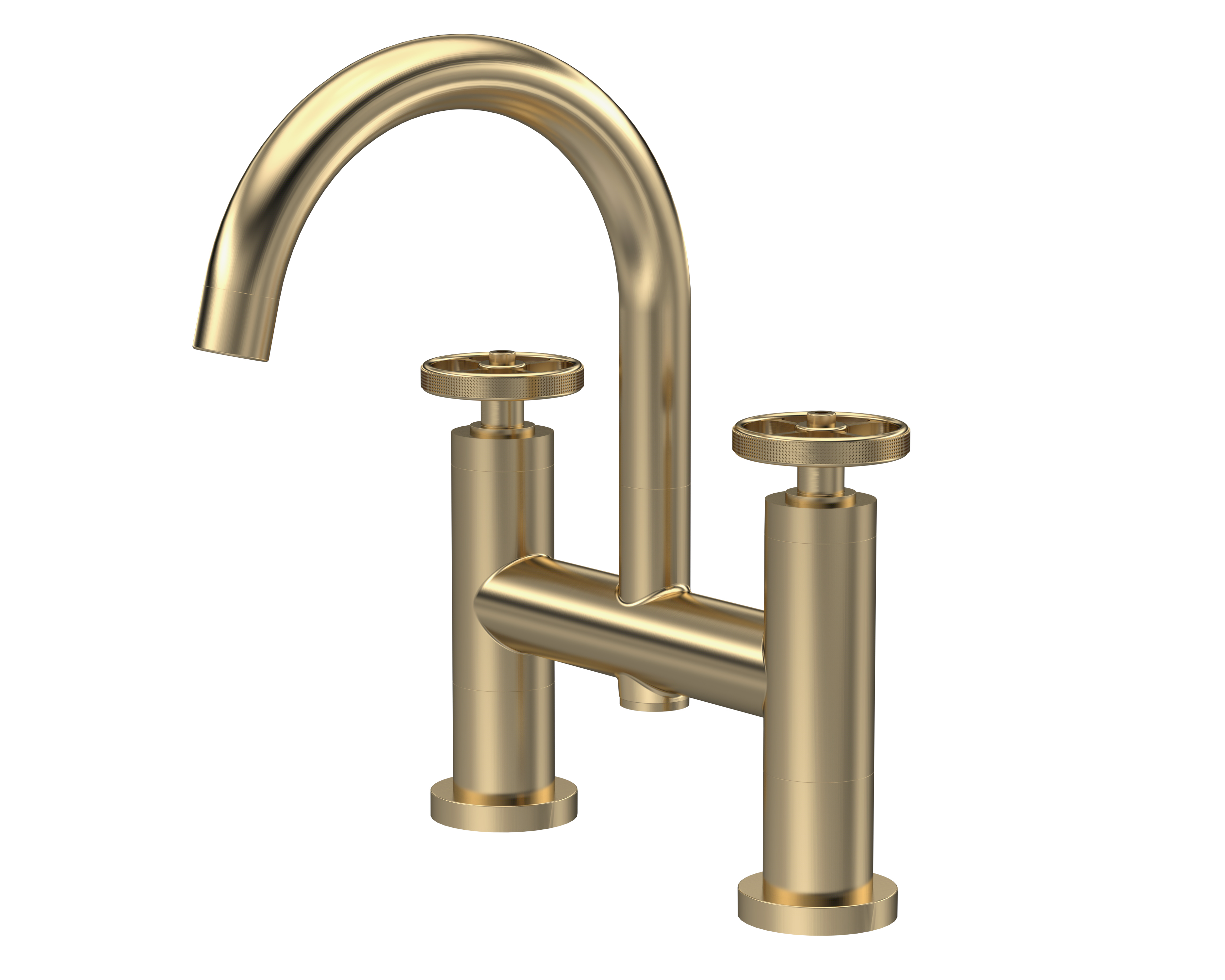

- Industrial style deck mounted bath filler offering a unique design
- Luxury brushed brass finish
- High quality brass internals
- Features ceramic disc technology for smooth operation
Details
General
Brand
Nuie
Style
Contemporary

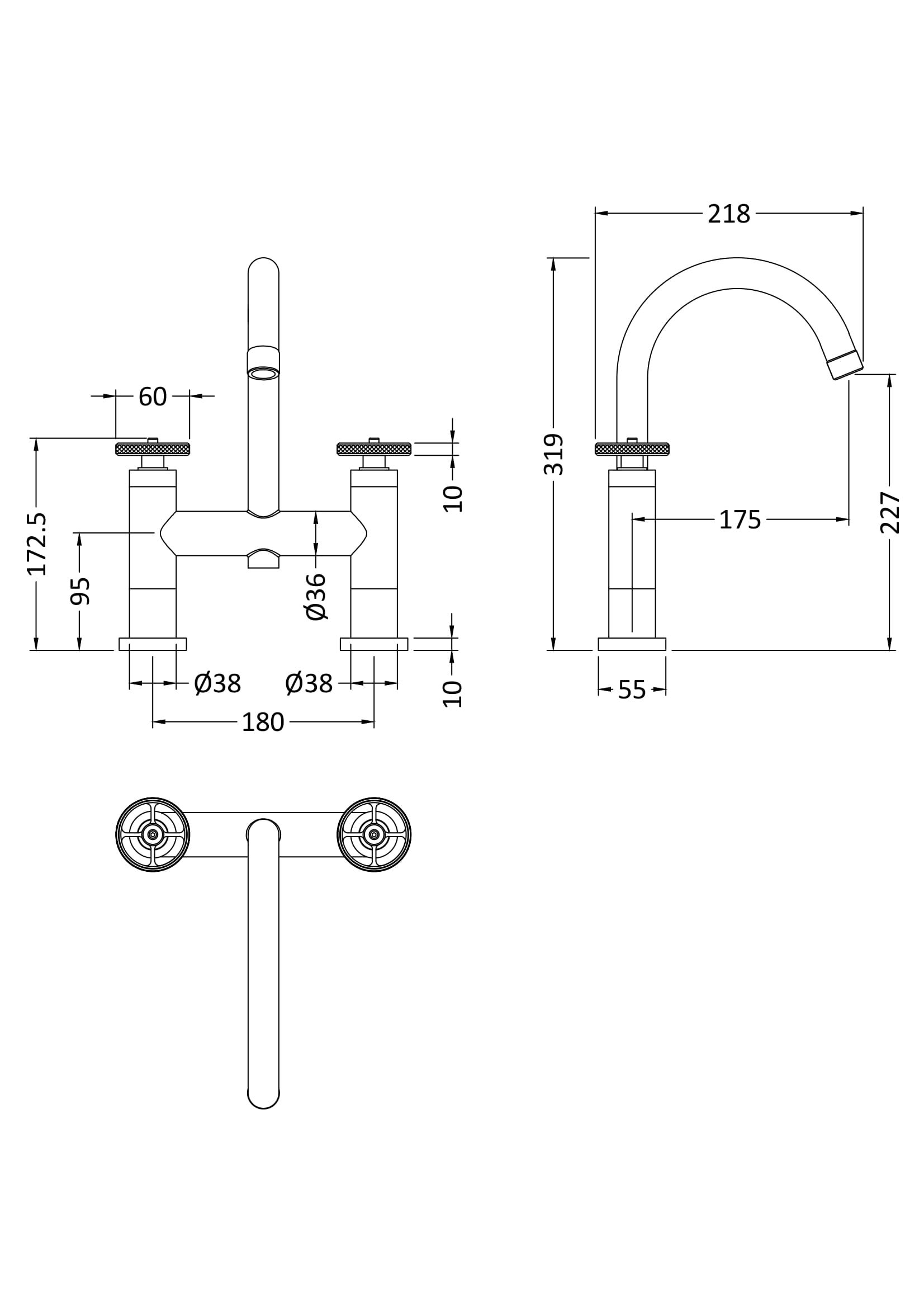

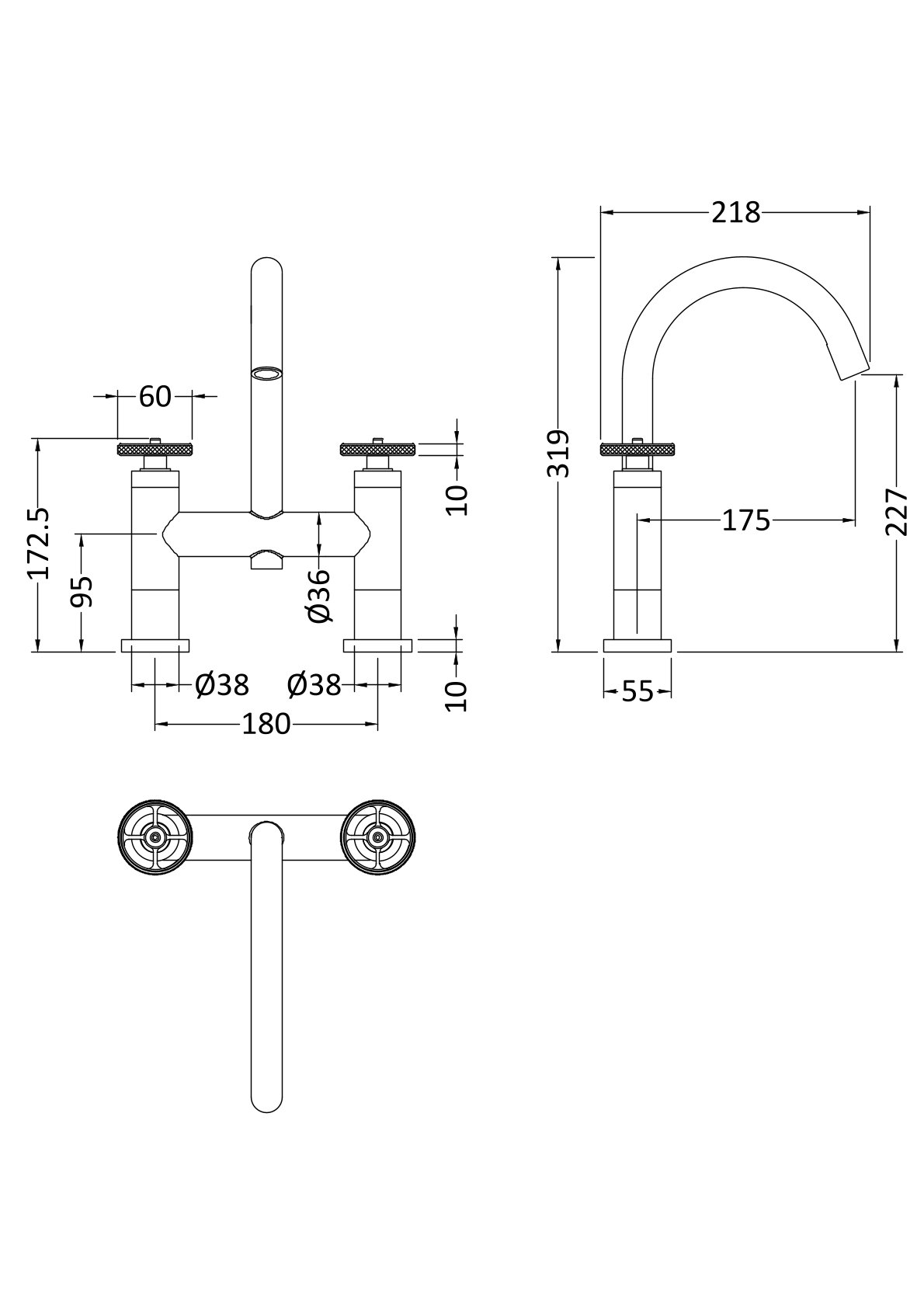

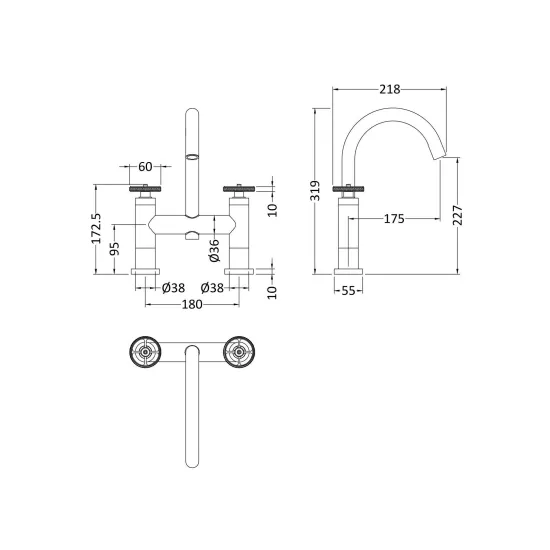

Dimensions & Capacity
Enclosure Adjust
-
Height Of Spout
205 mm
Pipe Centres
180
Pipe Size
22 mm (3/4" bsp)
Product Depth
50 mm
Product Height
319 mm
Product Width
230 mm
Tap Spout Projection
115 mm
Design & Materials
Colour
Brushed Brass
Number of Handles
2
Product Material
Brass
Installation & Compatibility
Assembly Required
No
Connection Size
22 mm (3/4" BSP)
What's Included
Includes Waste
Cartridge Included
Yes
Technical Specifications
Control Type
Manual
Flow Rate 0.1Bar l/m
8.0000
Flow Rate 0.5Bar l/m
29.0000
Flow Rate 1Bar l/m
40.0000
Flow Rate 2Bar l/m
48.0000
Handle Type
Crosshead
Mount Type
Deck
Operating Pressure
0.2 Bar
Valve/Cartridge Type
1/4 Turn Ceramic Disc
Compliance & Warranty
Guarantee no. of years
3 Years
TMV2 Approved
No
TMV3 Approved
No
WRAS Approval Number
2204060
WRAS Approved
Yes
