Features & Benefits
- Luxury crosshead handle with coloured indices and traditional domed collar.
- Suitable for low pressure systems.
- Ceramic disc technology for long life and smooth operation.
- High quality brass internals with luxury chrome finish.
Details
General
Brand
Bayswater
Style
Traditional

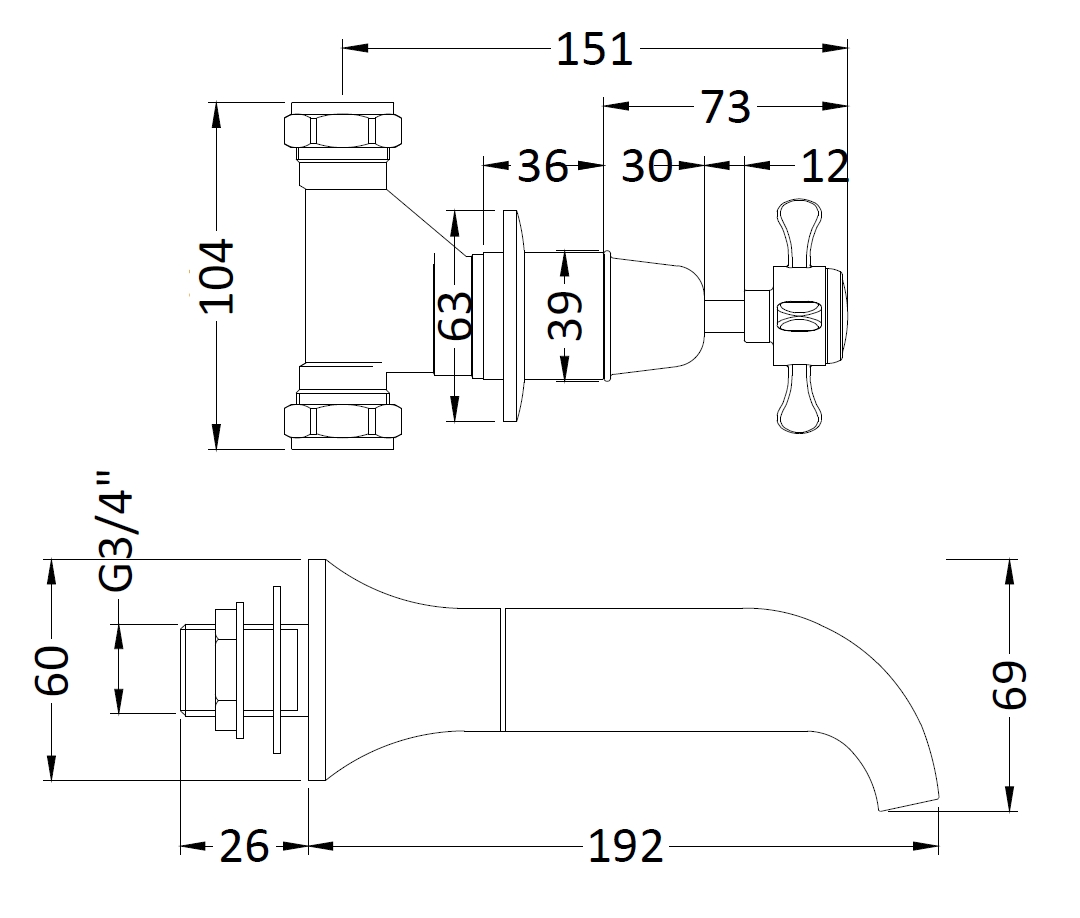

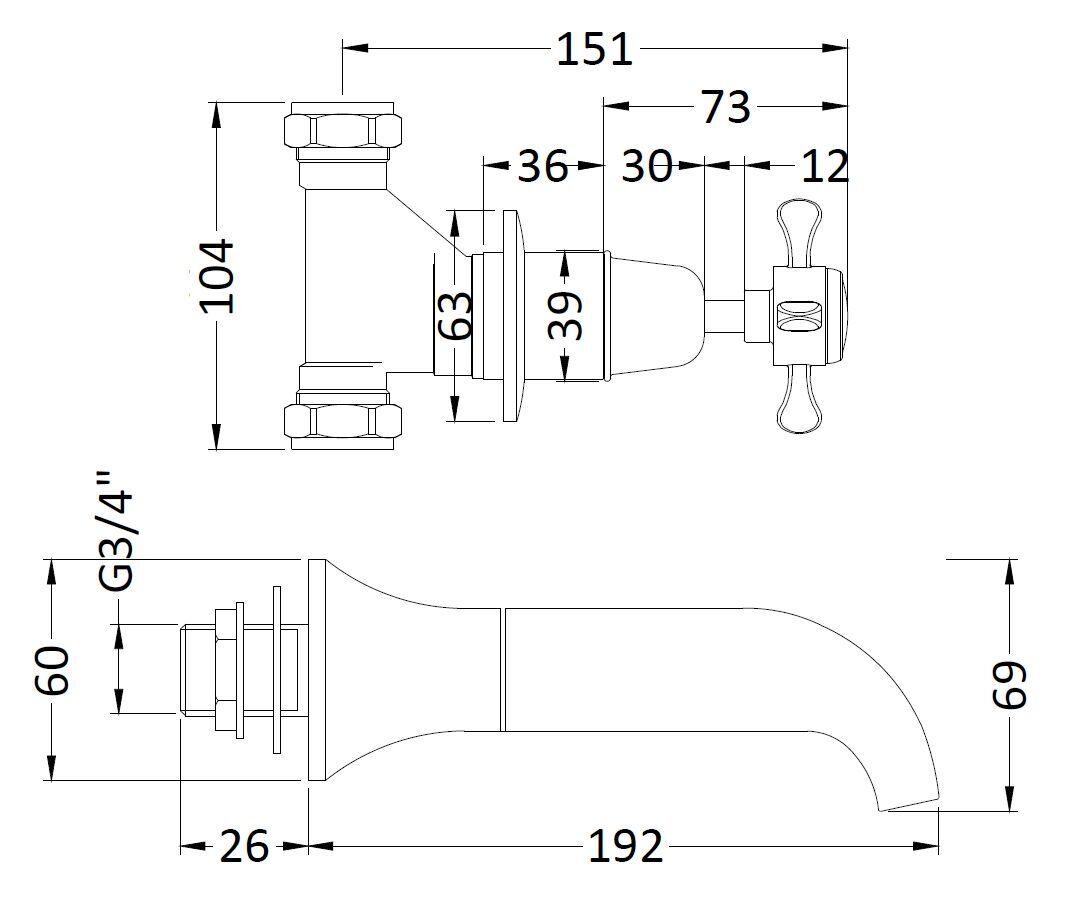

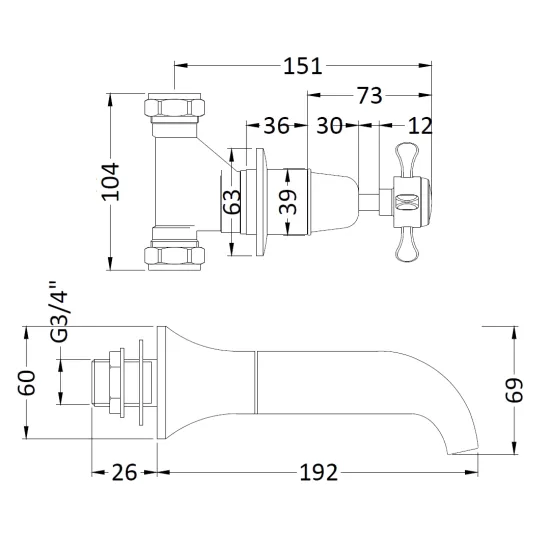

Dimensions & Capacity
Pipe Size
22 mm (3/4" bsp)
Product Depth
66 mm
Product Height
182 mm
Product Width
181 mm
Tap Spout Projection
192 mm
Design & Materials
Colour
Chrome
Number of Handles
2
Product Material
Brass
Installation & Compatibility
Assembly Required
No
Connection Size
22 mm (3/4" BSP)
What's Included
Includes Waste
No
Cartridge Included
Yes
Technical Specifications
Control Type
Manual
Flow Rate 0.1Bar l/m
9.6000
Flow Rate 0.5Bar l/m
20.0000
Flow Rate 1Bar l/m
28.0000
Flow Rate 2Bar l/m
39.5000
Flow Rate 3Bar l/m
46.8000
Handle Type
Crosshead
Mount Type
Wall Hung
Operating Pressure
0.1 Bar
Valve/Cartridge Type
1/4 Turn Ceramic Disc
Compliance & Warranty
Guarantee no. of years
20 Years
TMV2 Approved
No
TMV3 Approved
No
WRAS Approved
NO
