Features & Benefits
- Stunning contemporary angular design with luxury chrome finish
- Ceramic disc technology provides smooth operation and long life
- Excellent flow rates even at low pressure
- Supplied with co-ordinating push button waste
- Compact design is perfect for use in ensuites, cloakrooms and smaller bathrooms
Details
General
Brand
Nuie
Range
Windon
Style
Contemporary

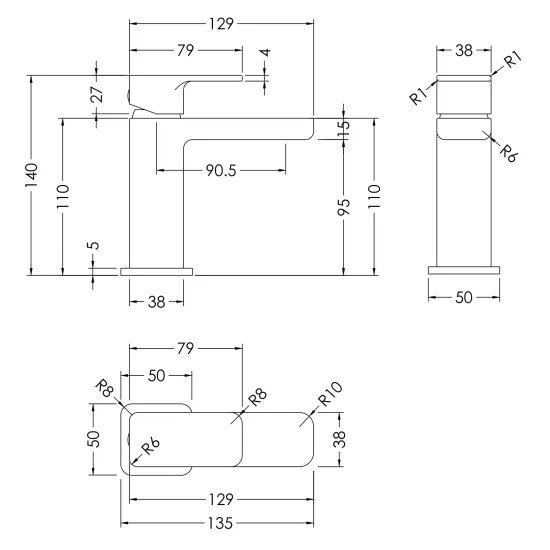

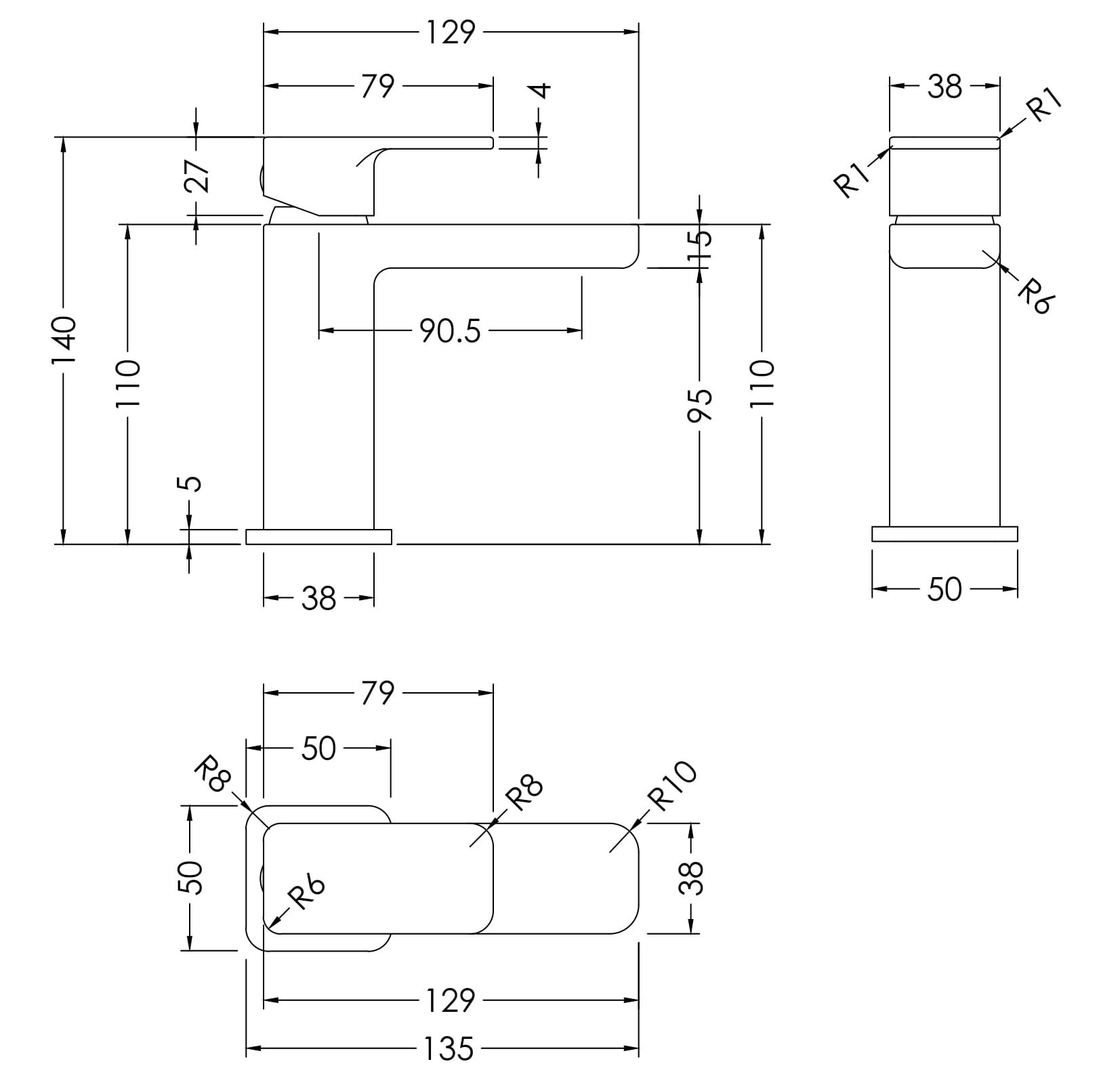

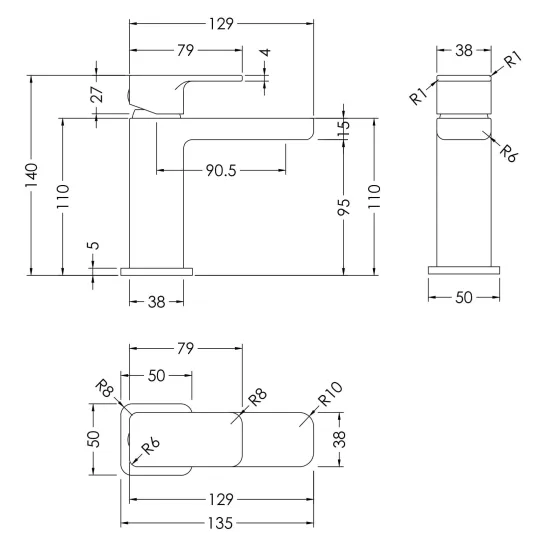

Dimensions & Capacity
Height Of Spout
95 mm
Pipe Size
1/2"
Product Depth
129 mm
Product Height
140 mm
Product Width
48 mm
Tap Spout Projection
90 mm
Design & Materials
Colour
Chrome
Number of Handles
1
Product Material
Brass,Plastic
Installation & Compatibility
Assembly Required
No
Connection Size
1/2"
What's Included
Includes Waste
Yes
Cartridge Included
Yes
Tap Tails Included
Yes
Technical Specifications
Control Type
Manual
Flow Rate 0.1Bar l/m
2.6000
Flow Rate 0.5Bar l/m
7.0000
Flow Rate 1Bar l/m
10.2000
Flow Rate 2Bar l/m
14.8000
Flow Rate 3Bar l/m
18.3000
Handle Type
Lever/Square
Mount Type
Deck
Operating Pressure
0.2 Bar
Valve/Cartridge Type
Single Lever Cartridge
Compliance & Warranty
Guarantee no. of years
5 Years
TMV2 Approved
No
TMV3 Approved
No
WRAS Approved
NO
