Features & Benefits
- Thermostatically controlled
- Bottom outlet
- Thermostatic control to +/- 2 degrees even if the water pressure fluctuates
- Full thermal protection to prevent scalding in the event of hot or cold water shut off
- In the event of hot or cold water failure the valve will shut down as per the relevant standard
- Suitable for shower pumps
- Manufactured from high quality brass & ABS
Details
Guarantee no. of years
5 Years
Brand
Nuie
Colour
Chrome
Assembly Required
No
Cartridge Included
Yes
Control Type
Manual
Enclosure Adjust
-
Flow Rate 0.1Bar l/m
4.0000
Flow Rate 0.5Bar l/m
10.0000
Flow Rate 1Bar l/m
17.0000
Flow Rate 2Bar l/m
21.0000
Flow Rate 3Bar l/m
26.0000
Handle Type
Round
Handset Included
No
Head Included
No
Mount Type
Surface/Wall
Operating Pressure
0.2 Bar
Outlet Elbow Included
No

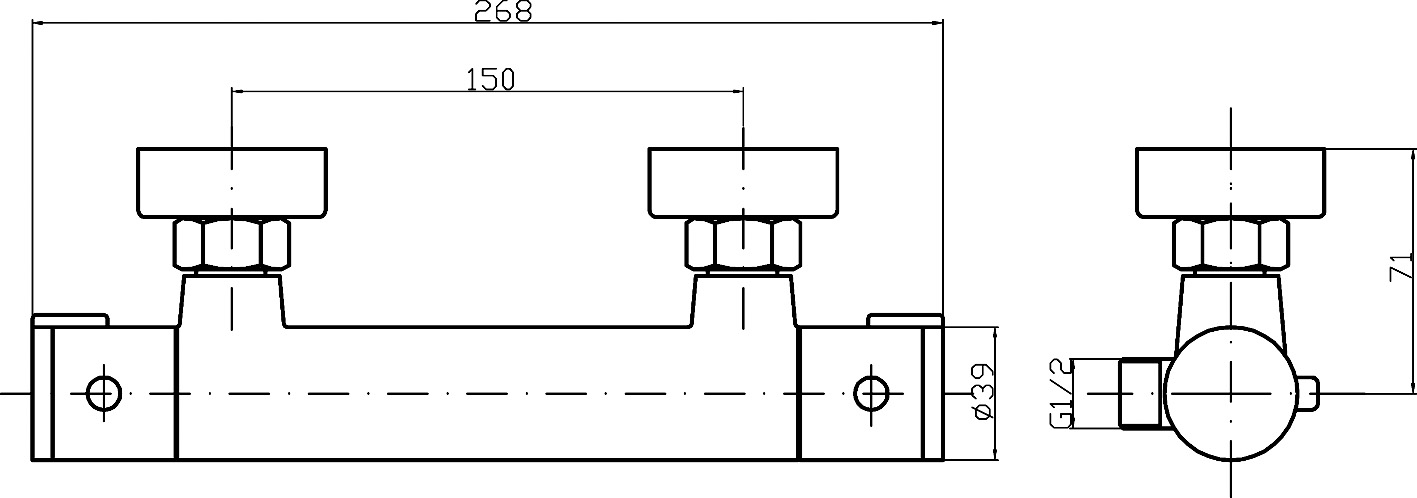

Pipe Centres
150
Product Depth
71 mm
Product Height
39 mm
Product Material
Brass Abs
Product Width
268 mm
Shower Valve Style Shape
Bar Valve
Stain Rust Resistant
Yes
TMV2 Approved
No
TMV3 Approved
No
Valve Handle Type/Shape
Bar Valve
Valve Included
Yes
Valve/Cartridge Type
1/4 Turn
WRAS Approved
NO
