Features & Benefits
- Minimalist sleek design
- Can be fitted vertically or horizontally
- Accurate flow control
- Thermostatic control to +/- 2 degrees even if the water pressure fluctuates
- Full thermal protection to prevent scalding in the event of hot or cold water shut off
- In the event of hot or cold water failure the valve will shut down as per the relevant standard
- The unique cartridge is highly resistant to calcium build up - even in hard water areas
- Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
- Excellent flow rates - even at low pressure
- The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
- Simply remove the cartridge turn 180° and replace
- Manufactured from high quality brass & ABS
Details
Guarantee no. of years
5 Years
Brand
Nuie
Colour
Chrome
Assembly Required
No
Cartridge Included
Yes
Control Type
Manual
Enclosure Adjust
-
Flow Rate 0.1Bar l/m
5.5000
Flow Rate 0.2Bar 1/m
7.1000
Flow Rate 0.5Bar l/m
14.0000
Flow Rate 1Bar l/m
20.0000
Flow Rate 2Bar l/m
29.0000
Flow Rate 3Bar l/m
44.0000
Handle Type
Lever/Round
Handset Included
No
Head Included
No
Mount Type
Recessed/Wall
No. Of Handles
2
Operating Pressure
0.1 Bar
Outlet Elbow Included
No

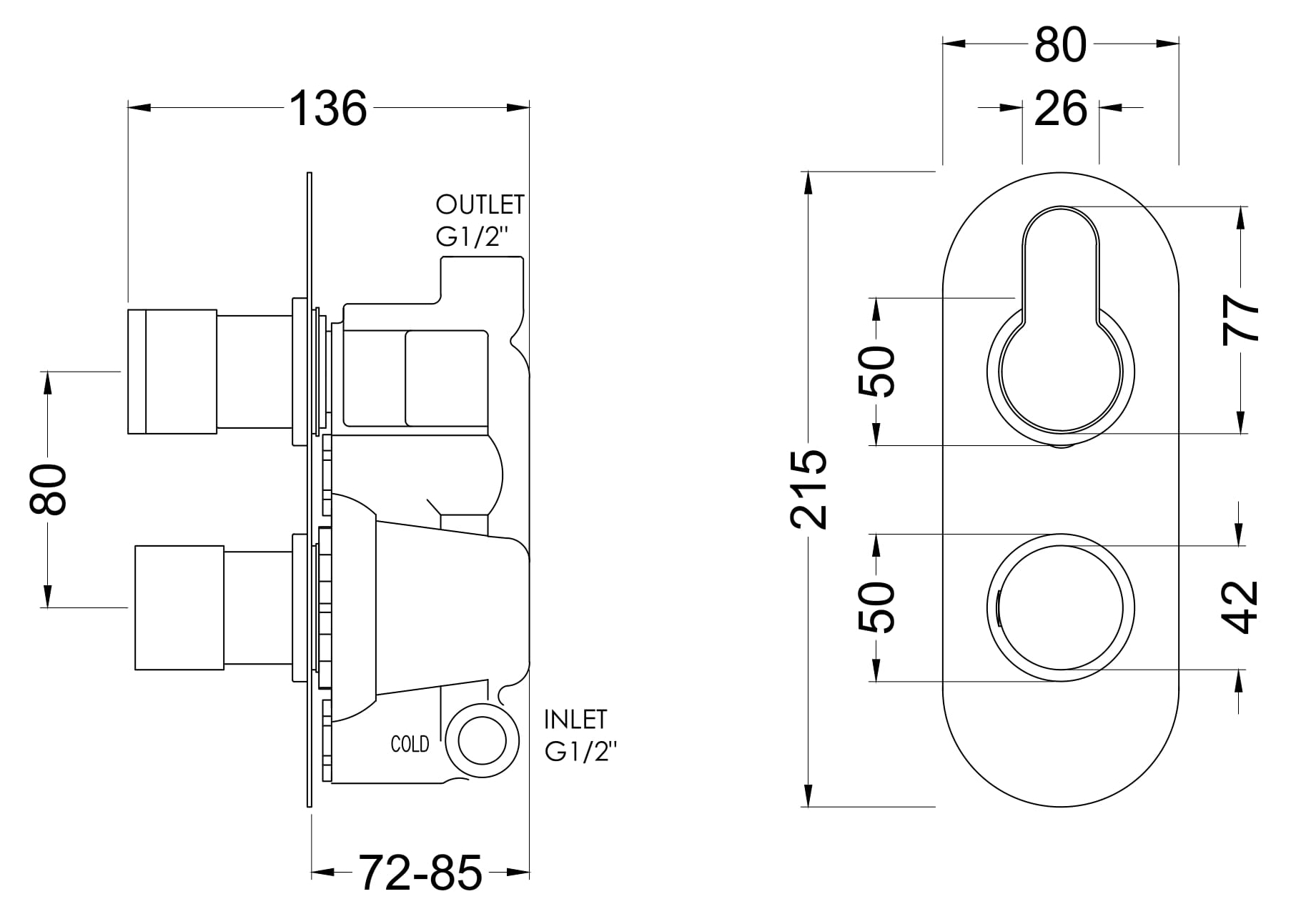

Product Depth
136 mm
Product Height
215 mm
Product Material
Brass Abs
Product Width
80 mm
Shower Valve Style Shape
Racetrack
Stain Rust Resistant
Yes
TMV2 Approved
No
TMV3 Approved
No
Valve Handle Type/Shape
Racetrack
Valve Included
Yes
Valve Mount Type
Concealed Shower
Valve/Cartridge Type
1/4 Turn
WRAS Approval Number
250602040
WRAS Approved
Yes
